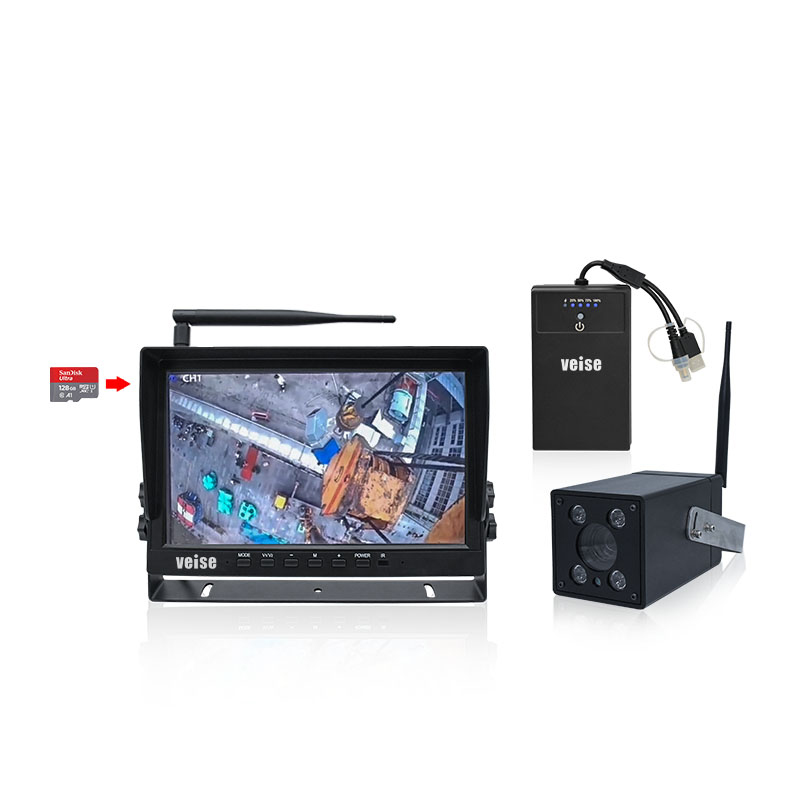

10.1-Inch 30x Zoom Crane Wireless Vehicle Monitoring System

10.1-Inch 30x Zoom Crane Wireless Vehicle Monitoring System

HDWS-1024SHD672M1-10W1

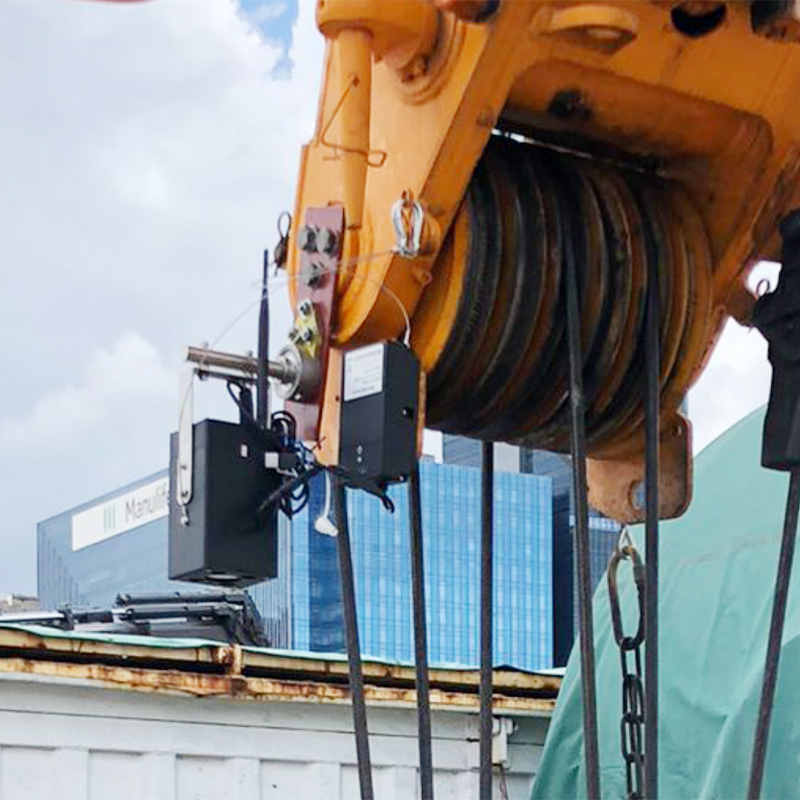

10.1-inch 1080P wireless zoom boom DVR system 30x wireless zoom camera, with simple zoom method, wireless display remote control, and supports infrared night vision function. It is used in cranes, cranes, etc. to make the operation of working conditions easy, efficient, safe and widespread. It is used in scenarios such as port machinery, hoisting industry, industry and construction industry.

Consult

Features Technical Indicators Overall Dimension

The 10.1-inch HD screen display has a built-in 2.4GHz wireless video receiver, multi-frequency frequency hopping, automatic code matching, anti-channel interference, and an open-air transmission distance of 200 meters.
Automotive-grade industrial-grade DSP, graphical OSD menu to set up screen mirroring and frontal imaging, reversing scale, and trigger priority application functions respectively
Supports controlling wireless zoom camera zoom and auto-focus through monitor buttons and foot switch, with video/playback function. Supports up to 128GB SD card
Using anti-rust metal U-shaped bracket + bilateral fastening and anti-vibration design
DC8~32V wide range operating voltage, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection to avoid improper use and guarantee the shelf life.
1080P 2.4GHz wireless zoom camera optical 30x zoom movement, digital anti-shake viewing distance 5-200 meters, built-in 4 LED infrared lights, adjust the infrared light power according to zoom, 50-meter high-definition night vision, standard DSP, million High-definition pixels, IP69K waterproof rating, mechanical vertical bracket, anti-drop rope design;
Magnetic all-aluminum alloy rechargeable waterproof power bank, 8000mAH fast-charging battery, supports fast charging protocol, magnet adsorption, IP67 waterproof rating (wireless zoom camera can be used for 10 hours when powered)
Product parameters

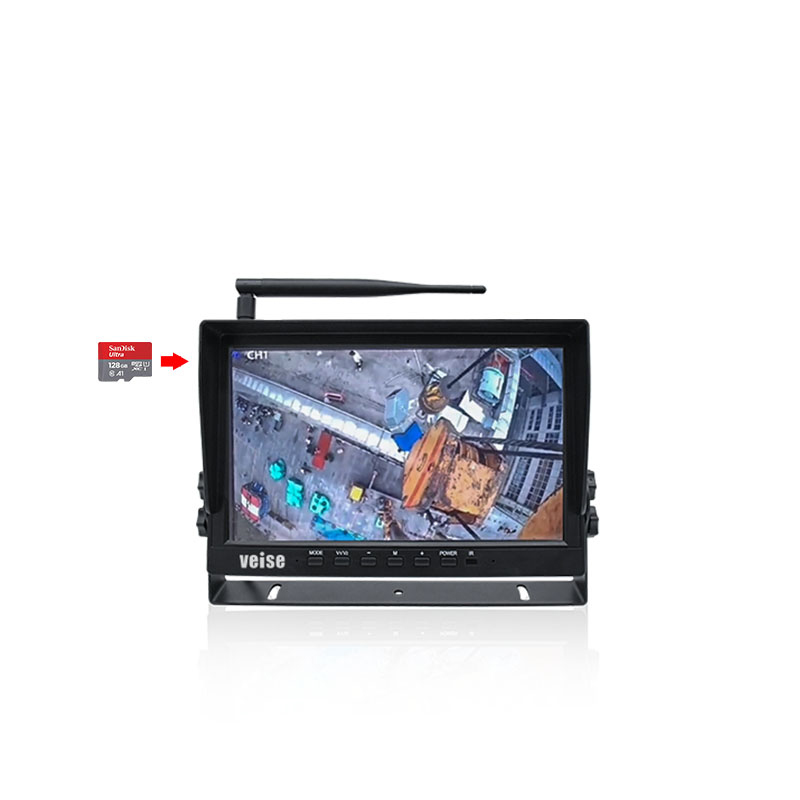

Wireless HD LCD car display (MWHD-1024SHD)
Color LCD display	10.1-inch IPS screen
wireless reception	Built-in 2.4G wireless receiver
Picture mode	Single screen/dual screen
working frequency	2400~2483.5MHZ
Video recording function	Supports up to 128GB SD card
video file	MP4 format
Receive sensitivity	≤-86dB
Receiving distance	Open space ≤ 200 meters
Multi-frequency automatic frequency hopping channel code selection	80
resolution	1024(H) X 600(V)dot
color format	PAL/NTSC (AUTO)
Brightness(cd/m2)	600
load dump	ISO16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms)
Vibration resistance level	5G (compliant with GB-T2423056-2006 standard)
Operating temperature	-20℃ to +70℃
storage temperature	-30℃ to +80℃
Operating Voltage	DC8-32V
Dimensions	(L x W x T) (276 x 185 x 66.5mm)

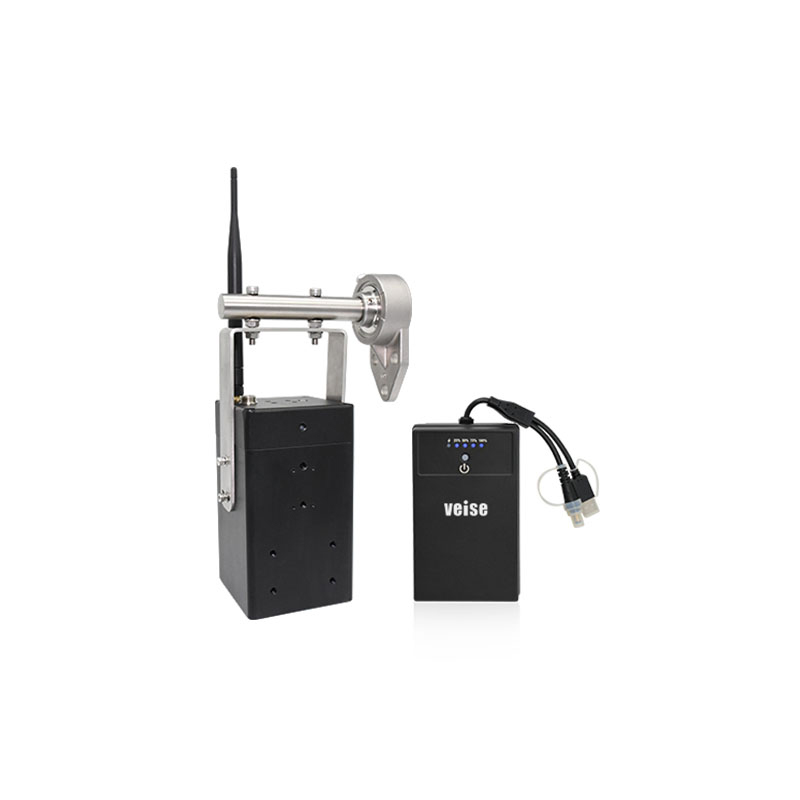

1080P digital wireless 30x zoom camera (CWHD-672M)
Image Sensor	1/2.8 Color
wireless transmission	Built-in 2.4G digital wireless transmitter
Transmit power	18dBm
Launch distance	Open space ≤ 200 meters
resolution	1080P
Effective Pixels	1920(H)X1080(V)
optical zoom	30 times
focal length	5.35～96.3mm
Aperture value	F1.6～F3.5
Horizontal viewing angle	64.1～3.6 degrees (wide angle-telephoto)
Visible distance	5-200 meters
Zoom speed	About 3 seconds (optical, wide-angle-telephoto)
focus mode	auto focus
day and night mode	IR-CUT automatic switching (daytime color, nighttime black and white image)
Infrared distance	50 meters (built-in 4 high-power infrared lights)
shell material	Aluminum alloy, anti-falling wire rope buckle design
Mounting brackets	Vertical gravity stainless steel bracket
waterproof level	IP69K
Operating Voltage	DC12-24V
Operating temperature	-20℃ to +60℃
storage temperature	-30℃ to +70℃
Vibration resistance level	5G (compliant with GB-T2423056-2006 standard)
Dimensions	220(W) x 90(H) x 90(D) mm
Mobile rechargeable power supply (MP-03B10W1)
Cell type	lithium polymer battery
Product capacity	30000maH(3.7v) 111Wh
USB input (supports fast charging)	USB universal port (with protocol fast charging) 12V/1.5A (it takes about 10.5 hours to fully charge)
DC output	DC12V/0.8A(DC5.5/2.1 male)
Charging cycle temperature	0°~+40°
Number of charge and discharge	>800 times
Discharge operating temperature	-10°~+50°
Anti-fall design	Anti-falling wire rope buckle design
Installation method	Magnetic base installation (built-in 11 strong magnets, front horizontal pulling force >20kg, side pulling force >8kg)
waterproof level	IP67
Shockproof level	5G
Dimensions	148(W) x 88(H) x 45.5(D) mm
