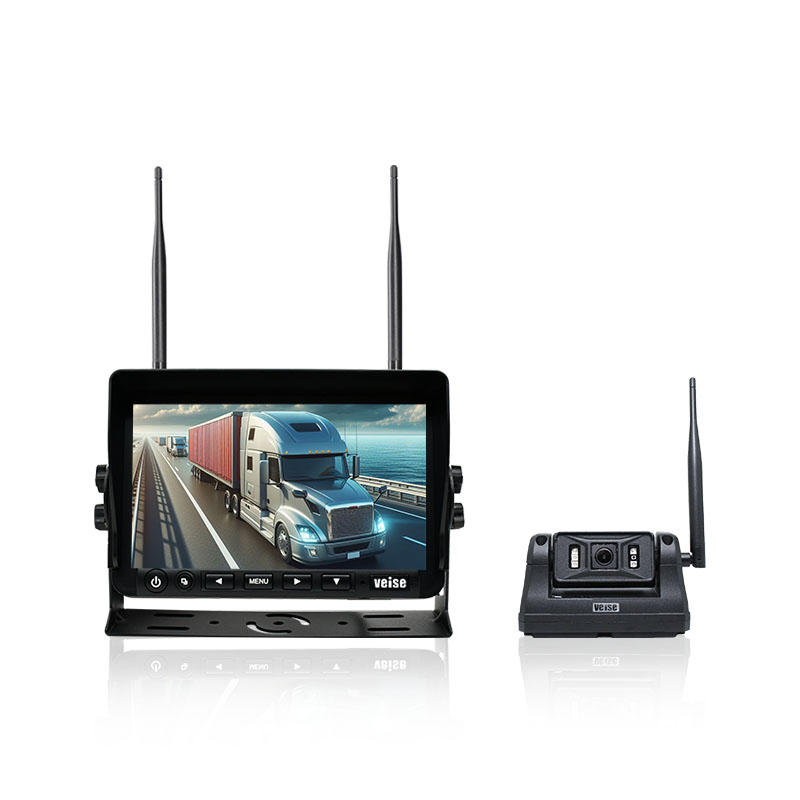

1080P Mobile Wireless Vehicle Surveillance System

1080P Mobile Wireless Vehicle Surveillance System

HDWS-774H362M1

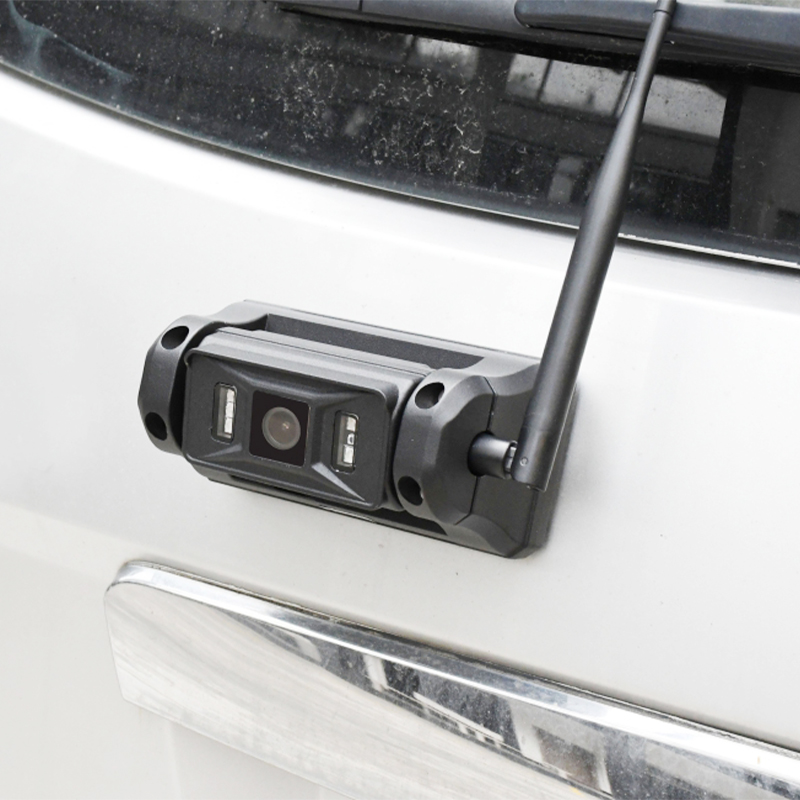

The wireless monitoring system uses radio waves to transmit video, audio, control and other signals. When construction wiring is impossible or inconvenient, a wireless video monitoring system can be quickly installed. The vehicle-mounted wireless monitoring system is particularly suitable for mobile monitoring requirements such as operating forklifts, cranes, construction tower cranes, port container gantry cranes, and home and urban public security that require telescopic operation. The magnet adsorbs the built-in power supply of the vehicle camera, which can be easily moved and installed on machinery, equipment, vehicles and event venues.

Consult

Features Technical Indicators Overall Dimension

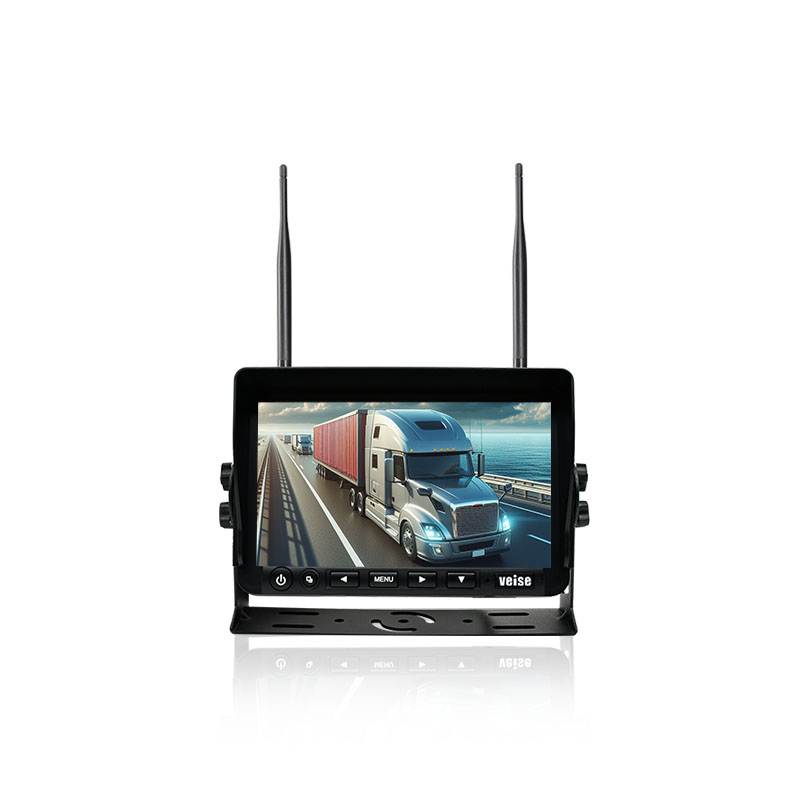

Wireless HD LCD car display
7-inch digital screen display with built-in 2.4GHz wireless receiver, 1024x600 high resolution and 600cd/㎡ high-brightness screen
Multi-frequency frequency hopping code matching, anti-channel interference, open air transmission distance of 200 meters
Automotive-grade industrial-grade DSP, graphical OSD menu to set up screen mirroring and frontal imaging, reversing scale, and trigger priority application functions
The bracket is made of rust-proof metal material, U-shaped + bilateral fastening and anti-vibration design
Wide range of operating voltage DC8~32V, load dump pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current and constant voltage protection circuit design to avoid improper use, automobile pulse voltage damage and guarantee the shelf life.

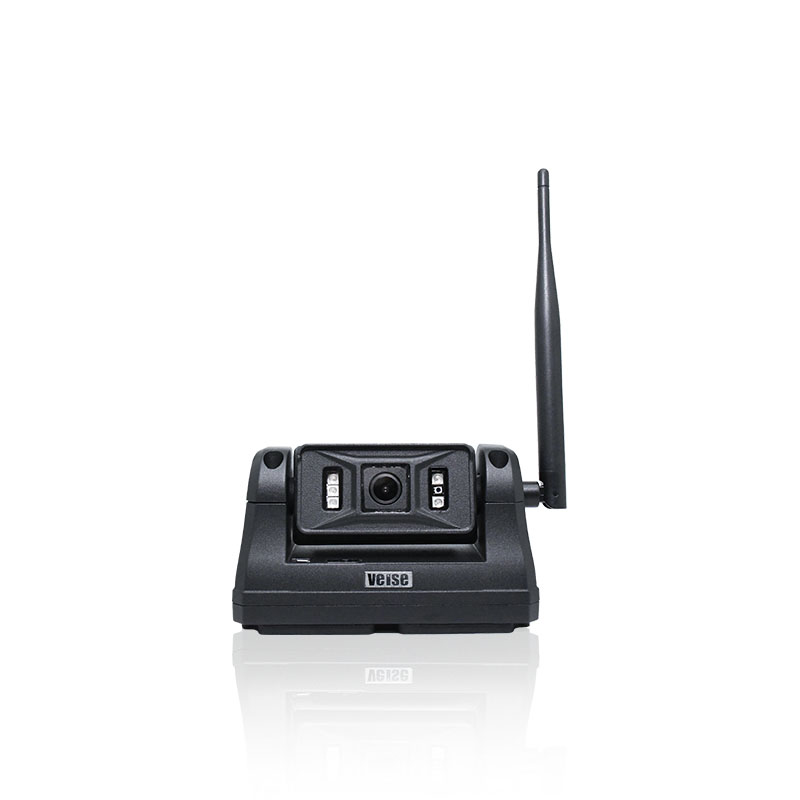

Wireless HD car waterproof camera
1080P 2.4GHz wireless camera, built-in 8000mAH fast-charging battery, magnet adsorption, car-standard DSP, million high-definition pixels, IP69K waterproof rating, IR LED night vision function
Product parameters

Wireless HD LCD car display (MWHD-774H)
Color LCD display	7-inch IPS screen
wireless reception	Built-in 2.4G wireless receiver
Picture mode	1/2/3/4 picture mode
working frequency	2400~2483.5MHZ
Receive sensitivity	≤-86dB
Receiving distance	Open space ≤ 200 meters
Multi-frequency automatic frequency hopping channel code selection	80
resolution	1024(H) X 600(V)dot
color format	PAL/NTSC (AUTO)
Brightness(cd/m2)	600
load dump	ISO16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms)
Vibration resistance level	5G (compliant with GB-T2423056-2006 standard)
Operating temperature	-20℃ to +70℃
storage temperature	-30℃ to +80℃
Operating Voltage	DC8-32V
Dimensions	(L x W x T) (218 x 150 x 54mm)
1080P wireless high-definition built-in battery car waterproof magnetic camera (CWHD-362M)
Image Sensor	1/2.9 Color DSP
wireless transmission	Built-in 2.4G digital wireless transmitter
Transmit power	18dBm
Launch distance	Open space ≤ 200 meters
resolution	1080P
Effective Pixels	1280(H) X 960(V)
Viewing angle	130°
Infrared distance	5 meters
Shell material+	Aluminum alloy
waterproof level	IP69K
Cell type	lithium polymer battery
Product capacity	8000maH(3.7v) 29.6Wh
Interface input	Type-C waterproof interface (with QC2.0 fast charging protocol) 12V/1.5A
Power display	Fast charging indicator light and 25%-50%-75%-100% battery indicator light
battery switch	touch switch
Charging cycle temperature	0℃~+40℃
Number of charge and discharge	>800 times
Discharge time	about 20 hours
Installation method	Silicone magnetic base installation
Operating temperature	-10℃ to +60℃
storage temperature	-20℃ to +70℃
Vibration resistance level	GB/T 2423.56-2018 standard (random 5G vibration)

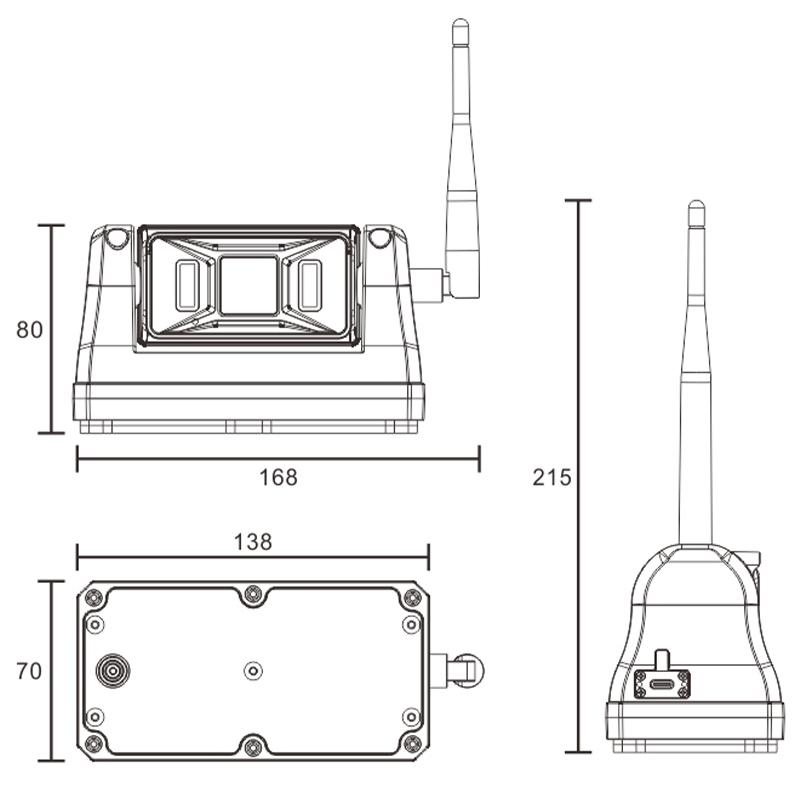

Dimensions	138(W) x 80(H) x 70(D) mm (without antenna)
