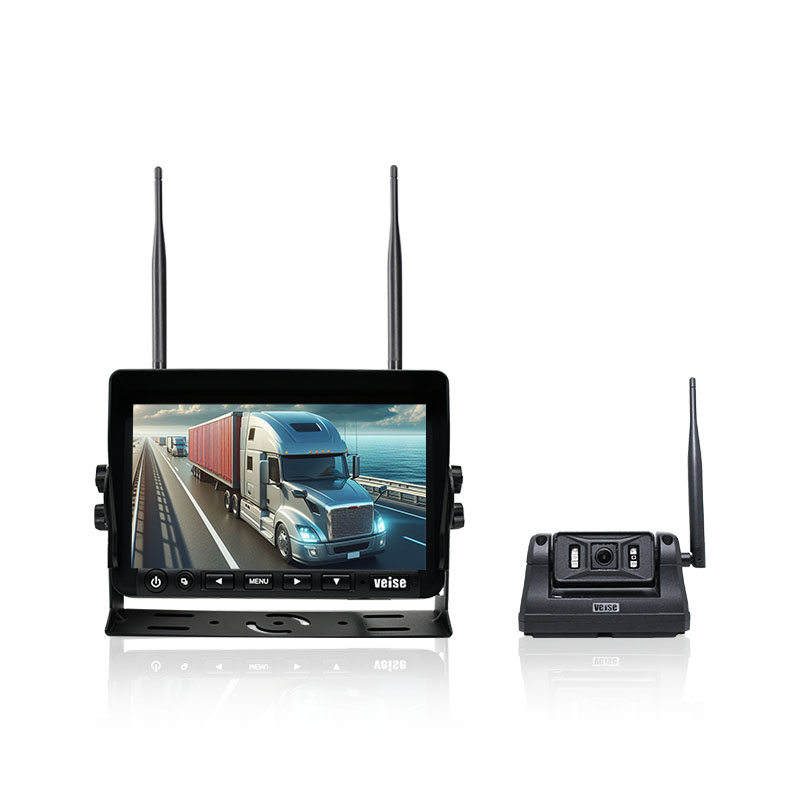

Laser Positioning Integrated Forklift Wireless Vehicle Monitoring System

Laser Positioning Integrated Forklift Wireless Vehicle Monitoring System

HDWS-774HD23A2M1-03B10W1
The forklift blocks the driver's line of sight when transporting objects, creating safety blind spots in the front and rear lines of sight, posing safety hazards to personnel and equipment in the area, and making it difficult to stack and place goods accurately. The forklift wireless camera monitoring system helps the operator observe the front and rear of the vehicle in real time through the monitor image, reducing blind spots and improving the efficiency of stacking goods. 30000mAH high power mobile power supply with long working time.

Consult

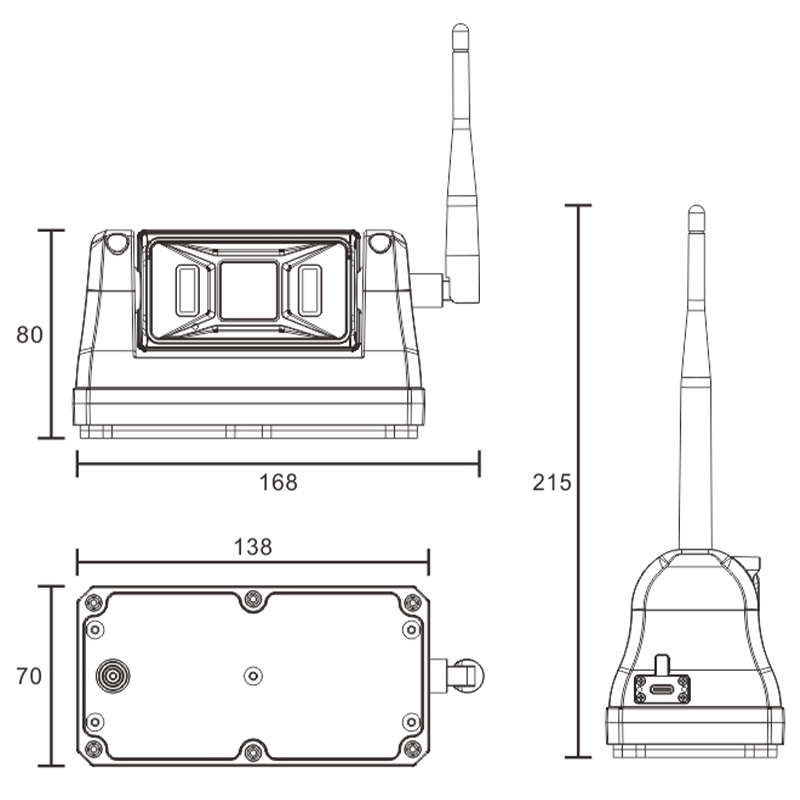

Features Technical Indicators Overall Dimension

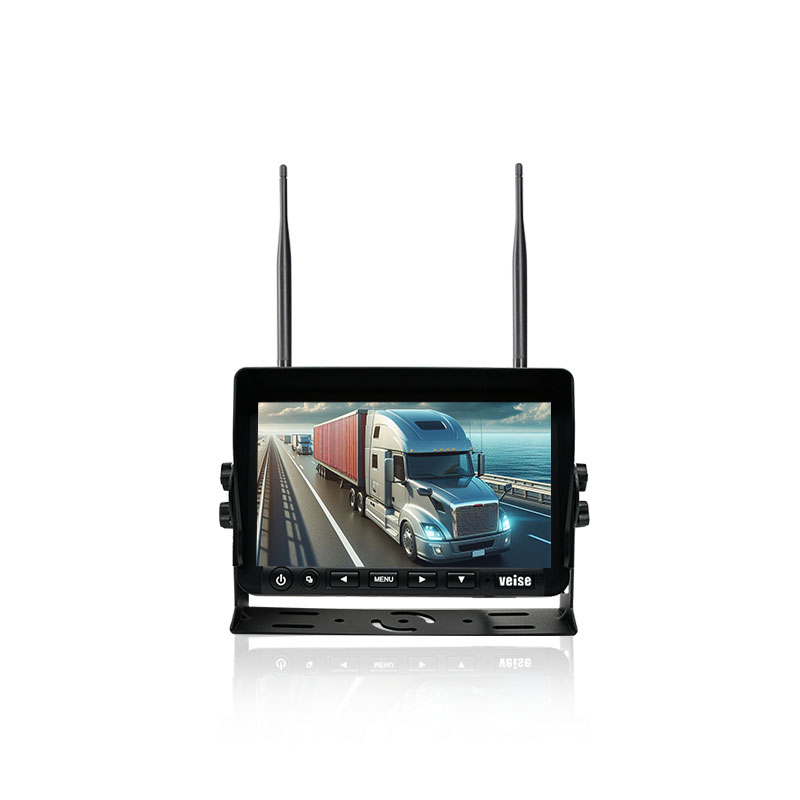

Wireless HD LCD car display
7-inch digital screen display with built-in 2.4GHz wireless receiver, 1024x600 high resolution and 600cd/㎡ high-brightness screen
Multi-frequency hopping frequency coding, anti-channel interference, open air transmission distance of 100 meters
Automotive-grade industrial-grade DSP, graphical OSD menu to set up screen mirroring and frontal imaging, reversing scale, and trigger priority application functions
The bracket is made of rust-proof metal material, U-shaped + bilateral fastening and anti-vibration design
Wide range of operating voltage DC8~32V, load dump pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current and constant voltage protection circuit design to avoid improper use, automobile pulse voltage damage and guarantee the shelf life.

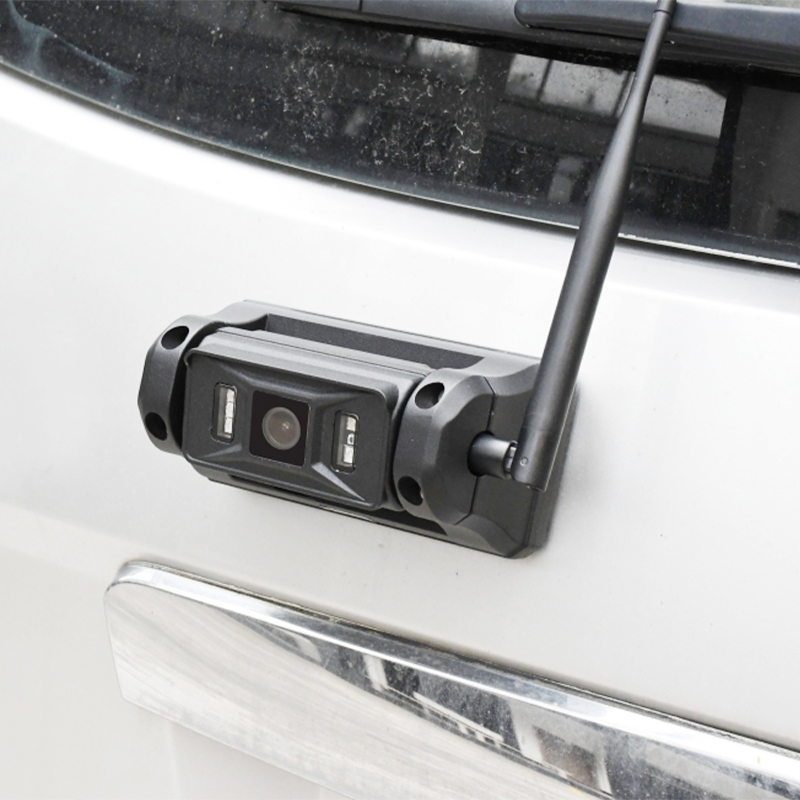

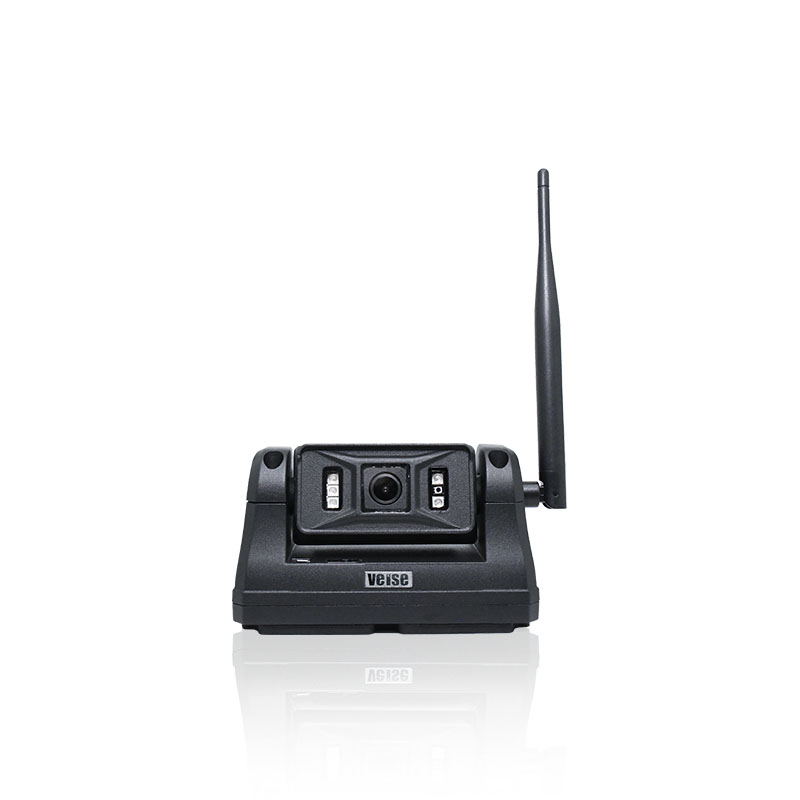

Wireless HD car waterproof camera
1080P 2.4GHz wireless camera, car-grade DSP, mega high-definition pixels
Stainless steel anti-collision case, built-in green laser positioning line, waterproof grade IP69K
Mobile rechargeable power supply
Rechargeable mobile power supply, built-in short circuit reverse polarity protection circuit and overcharge and over-discharge protection circuit design
Constant current and constant voltage circuit design to extend service life
It adopts magnetic installation design and can be installed in any vehicle position.
Waterproof grade IP67
Product parameters

Wireless HD LCD car display (MWHD-774HD)
Color LCD display	7-inch IPS screen
wireless reception	Built-in 2.4G wireless receiver
Picture mode	Single screen/dual screen/triple screen/quad screen
working frequency	2400~2483.5MHZ
Video recording function	Supports up to 256GB TF card
video file	AVI format
Receive sensitivity	≤-86dB
Receiving distance	Open space≤100 meters
Multi-frequency automatic frequency hopping channel code selection	80
resolution	1024(H) X 600(V)dot
color format	PAL/NTSC (AUTO)
Brightness(cd/m2)	600
load dump	ISO16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms)
Vibration resistance level	5G (compliant with GB-T2423056-2006 standard)
Operating temperature	-20℃ to +70℃
storage temperature	-30℃ to +80℃
Operating Voltage	DC8-32V
Dimensions	(L x W x T) (216 x 150 x 80mm)
1080P digital wireless camera with built-in laser positioning (CWHD-23A2M)
Image Sensor	1/2.9 Color DSP
wireless transmission	Built-in 2.4G digital wireless transmitter
Transmit power	18dBm
Launch distance	Open space≤100 meters
resolution	1080P
Effective Pixels	1920(H)X1080(V)
Viewing angle	52°
shell material	304 stainless steel, anti-collision design
laser positioning	Green one-word laser
waterproof level	IP69K
Operating Voltage	DC12V
Operating temperature	-20℃ to +60℃
storage temperature	-30℃ to +70℃
Vibration resistance level	5G (compliant with GB-T2423056-2006 standard)
Dimensions	116(W) x 37(H) x 30(D) mm
Mobile rechargeable power supply (MP-03B10W1)
Cell type	Lithium-ion polymer battery
Cell capacity	111Wh/30000mAh
Rated Capacity	7500mAh/(12V 0.5A)
USB input (supports fast charging)	5V=15W,9V/12V=18W
DC output	12V(0.8A)-9.6W)Max
waterproof level	IP67
Charging ambient temperature	0℃~+50℃
Discharge operating temperature	-20℃~+55℃
Storage temperature	-40℃~+60℃
Dimensions	148(W) x 88(H) x 46.5(D) mm
