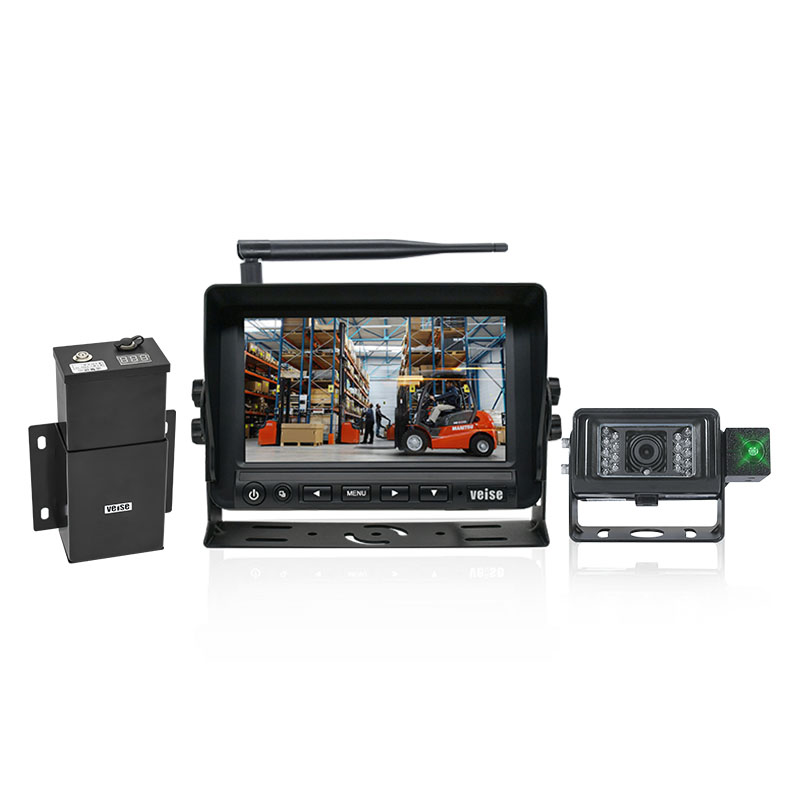

Laser Positioning Forklift Wireless Vehicle Monitoring System

Laser Positioning Forklift Wireless Vehicle Monitoring System

HDWS-774HDW152M1-1280A
The forklift blocks the driver's line of sight when transporting objects, creating safety blind spots in the front and rear lines of sight, posing safety hazards to personnel and equipment in the area, and making it difficult to stack and place goods accurately. The forklift wireless camera monitoring system helps the operator observe the front and rear of the vehicle in real time through the monitor image, reducing blind spots and improving the efficiency of stacking goods. The 8000mAH mobile power supply has a long working time.

Consult

Features Technical Indicators Overall Dimension

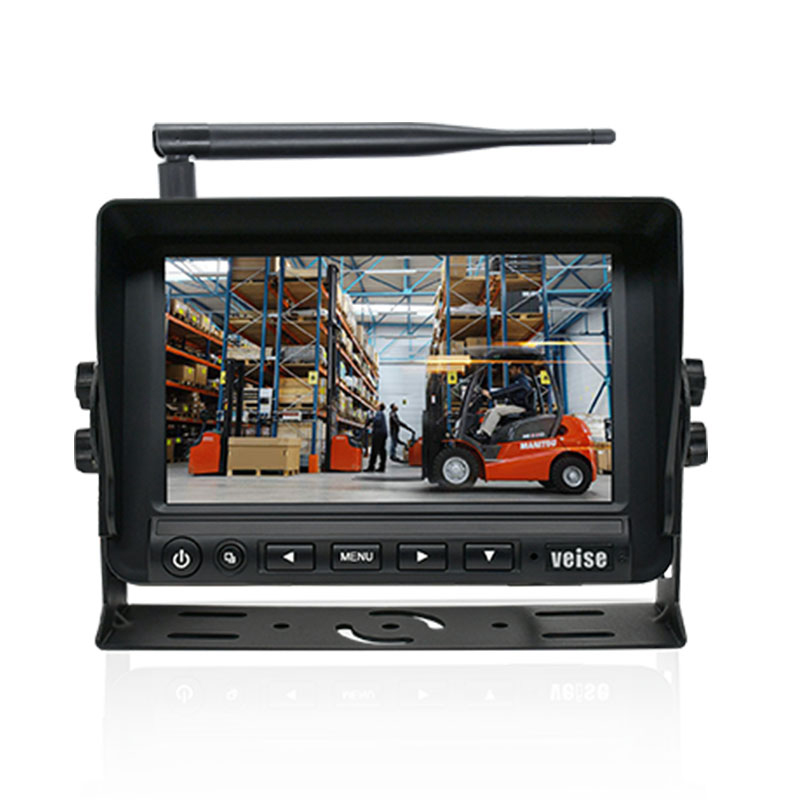

Wireless HD LCD car display
7-inch digital screen display with built-in 2.4GHz wireless receiver, 1024x600 high resolution and 600cd/㎡ high-brightness screen
Multi-frequency hopping frequency coding, anti-channel interference, open air transmission distance of 100 meters
Automotive-grade industrial-grade DSP, graphical OSD menu to set up screen mirroring and frontal imaging, reversing scale, and trigger priority application functions
The bracket is made of rust-proof metal material, U-shaped + bilateral fastening and anti-vibration design
Wide range of operating voltage DC8~32V, load dump pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current and constant voltage protection circuit design to avoid improper use, automobile pulse voltage damage and guarantee the shelf life.

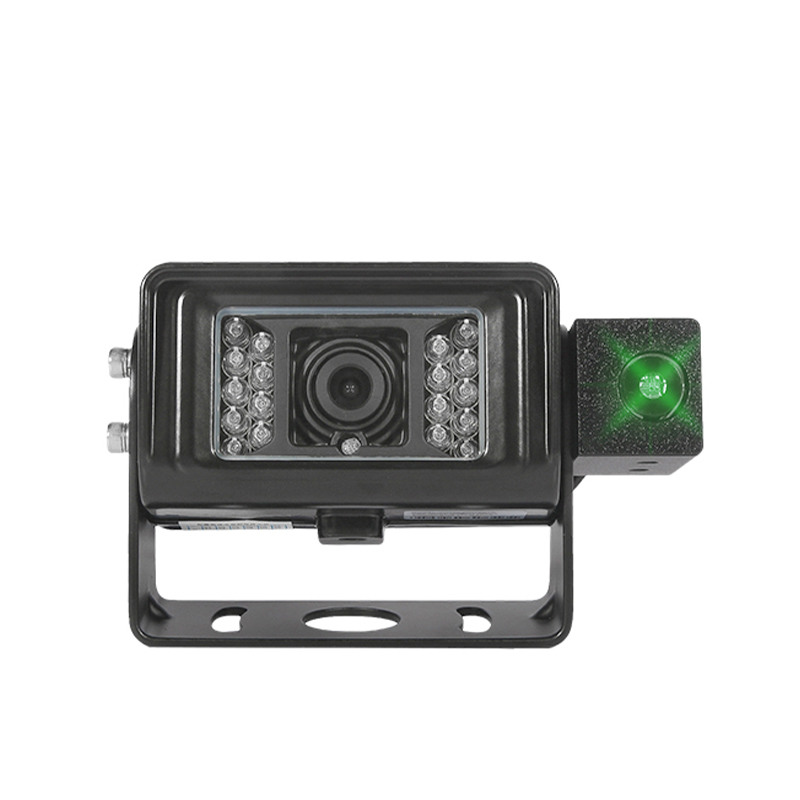

Wireless HD car waterproof camera
1080P 2.4GHz wireless camera, car-standard DSP, mega high-definition pixels
Built-in cross laser positioning line, waterproof grade IP69K

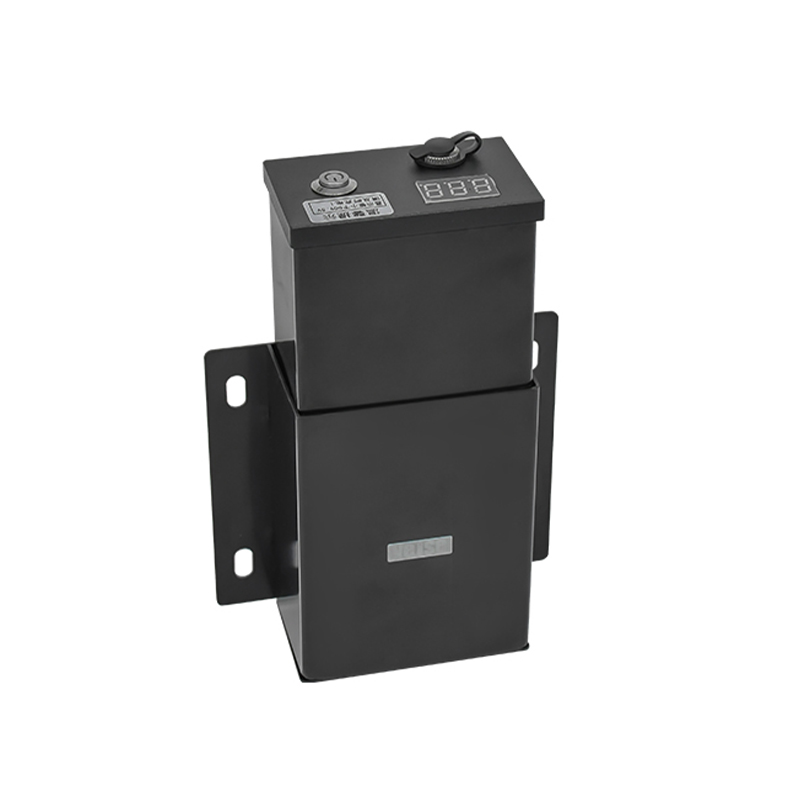

Mobile rechargeable power supply
All-aluminum alloy rechargeable and waterproof mobile power supply, 8000mAH lithium polymer battery, built-in short-circuit and reverse circuit protection, overcharge and over-discharge protection circuit design, constant current and constant voltage circuit design, waterproof grade IP67, extended service life
Product parameters

Wireless HD LCD car display (MWHD-774H)
Color LCD display	7-inch IPS screen
wireless reception	Built-in 2.4G wireless receiver
Picture mode	Single screen/dual screen
working frequency	2400~2483.5MHZ
Receive sensitivity	≤-86dB
Receiving distance	Open space≤100 meters
Multi-frequency automatic frequency hopping channel code selection	80
resolution	1024(H) X 600(V)dot
color format	PAL/NTSC (AUTO)
Brightness(cd/m2)	600
load dump	ISO16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms)
Vibration resistance level	GB/T 2423.56-2018 standard (random 5G vibration)
Operating temperature	-20℃ to +70℃
storage temperature	-30℃ to +80℃
Operating Voltage	DC8-32V
Dimensions	(L x W x T) (216 x 150 x 80mm)
Wireless HD car waterproof camera (CWHD-DW152M)
Image Sensor	1/3.7 Color DSP
wireless transmission	Built-in 2.4G digital wireless transmitter
Transmit power	18dBm
Launch distance	Open space≤100 meters
resolution	1080P
Effective Pixels	1920(H) X 1080(V)
Viewing angle	130°
laser positioning	Cross green laser line
shell material	Aluminum alloy
waterproof level	IP69K
Operating Voltage	DC8-32V
Operating temperature	-20℃ to +60℃
storage temperature	-30℃ to +70℃
Vibration resistance level	GB/T 2423.56-2018 standard (random 5G vibration)
Dimensions	106(W) x 75(H) x 70.4(D) mm
Mobile rechargeable power supply (DF-DC-1280A)
Cell type	polymer
Product capacity	8000maH(11.1V) 88.8Wh
USB input (supports fast charging)	12.6V(3A)
DC output	12V(2A) (takes about 30 hours with camera)
waterproof level	IP65
Charging cycle temperature	0°~+40°
Discharge operating temperature	-20°~+60°
Dimensions	136.5(W) x 120(H) x 49(D) mm
