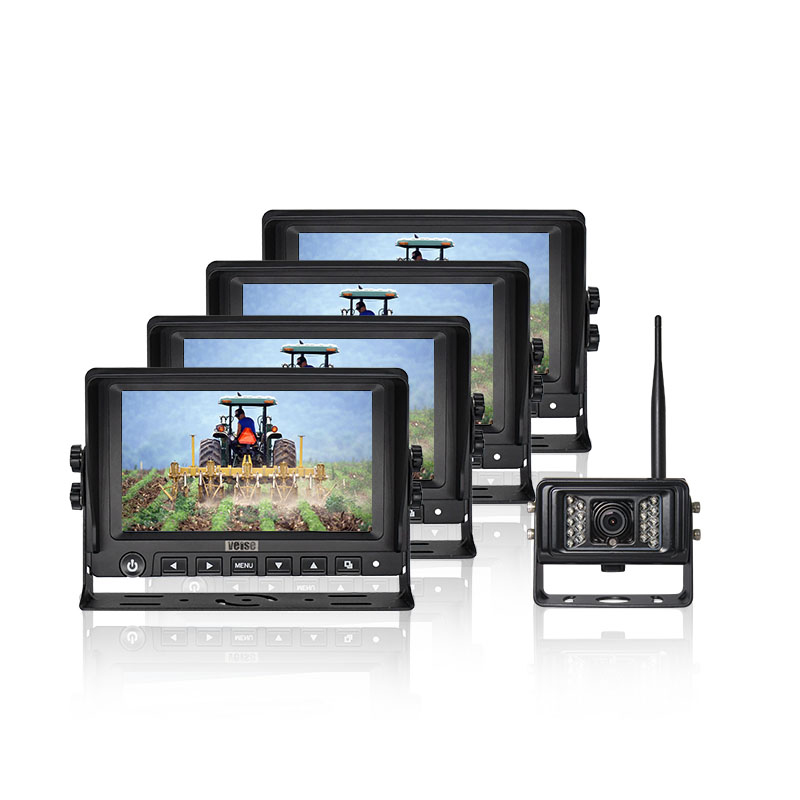

1+4 Vehicle Wireless Monitoring System

DF-8275TXN-766RX4
Large-area agricultural harvesting operations require coordination between large harvesters and multiple other transport vehicles. The harvester driver needs to observe the progress of canned crops in the carriage of the transport vehicle. To this end, a wireless camera is required to be installed at the output port of the harvester to monitor the transportation compartment to provide images to the harvester and transportation driver while observing the progress of the canned crops in the transportation compartment. This camera 1+4 monitor wireless monitoring system can meet the needs of up to four monitoring points. It can also be easily used in mining carts, medical teaching and other needs.

Consult

Features Technical Indicators Overall Dimension

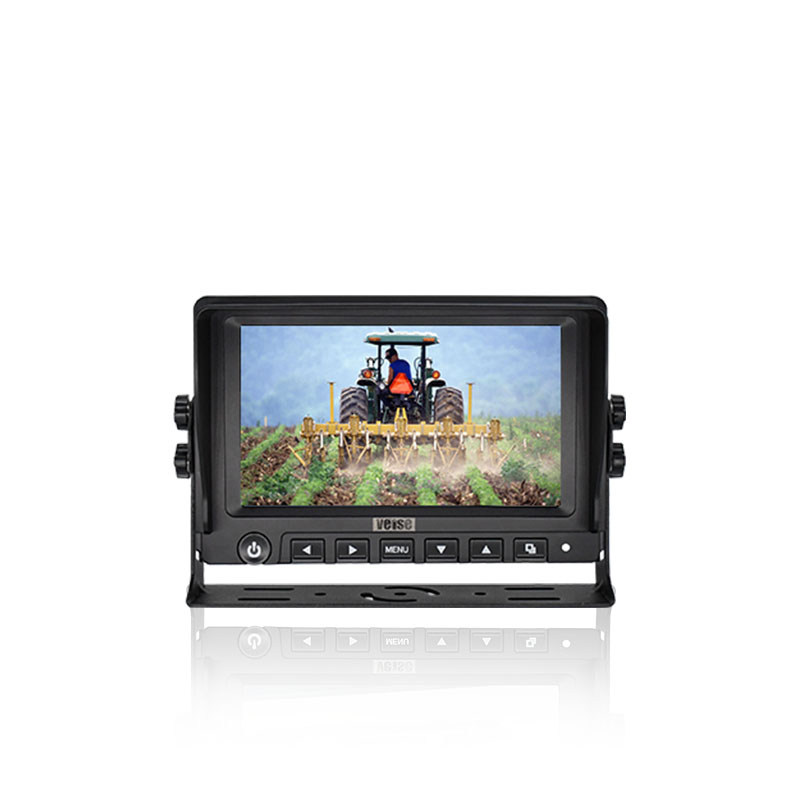

Wireless LCD car display
The 7-inch monitor has a built-in 2.4GHz wireless video receiver, multi-frequency frequency hopping, automatic coding, anti-channel interference, and a transmission distance of 50 meters in open space.
Automotive-grade industrial-grade DSP and OSD menus respectively set up image mirroring and forward image, reversing image delay, and trigger priority application functions
DC8~32V wide range operating voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection to avoid improper use and guarantee the shelf life.

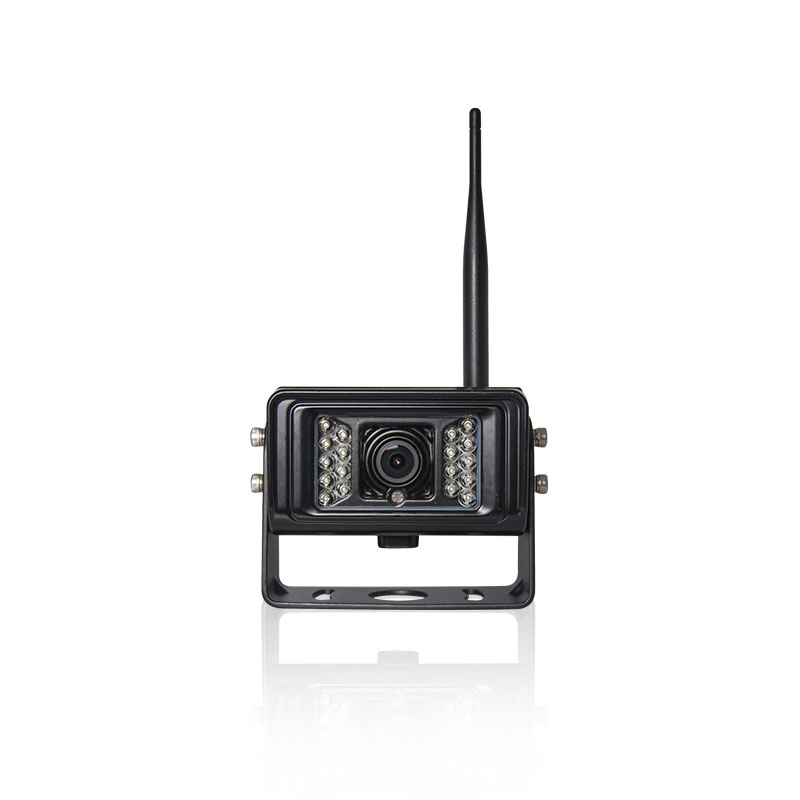

2.4GHz wireless camera
A single wireless camera transmits the same monitoring picture to 4 wireless monitors at the same time. It has automotive-grade industrial-grade DSP, IP69K waterproof rating, and a built-in IR-CUT filter to correct daytime color cast problems and improve nighttime brightness.
Product parameters

Wireless LCD car display (SP-766RX) * 2 * 3 * 4 (optional)
Color LCD display	7-inch LCD screen
Wireless receiver	2.4G digital
Picture mode	single screen
working frequency	2400~2483.5MHZ
Receive sensitivity	≤-86dB
Receiving distance	Open space ≤50 meters
resolution	800(H)
color format	PAL/NTSC (AUTO)
brightness	400cd/m²
load dump	ISO16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms)
Vibration resistance level	5G (compliant with GB-T2423056-2006 standard)
Operating temperature	-20℃ to +70℃
storage temperature	-30℃ to +80℃
Operating Voltage	DC8-32V

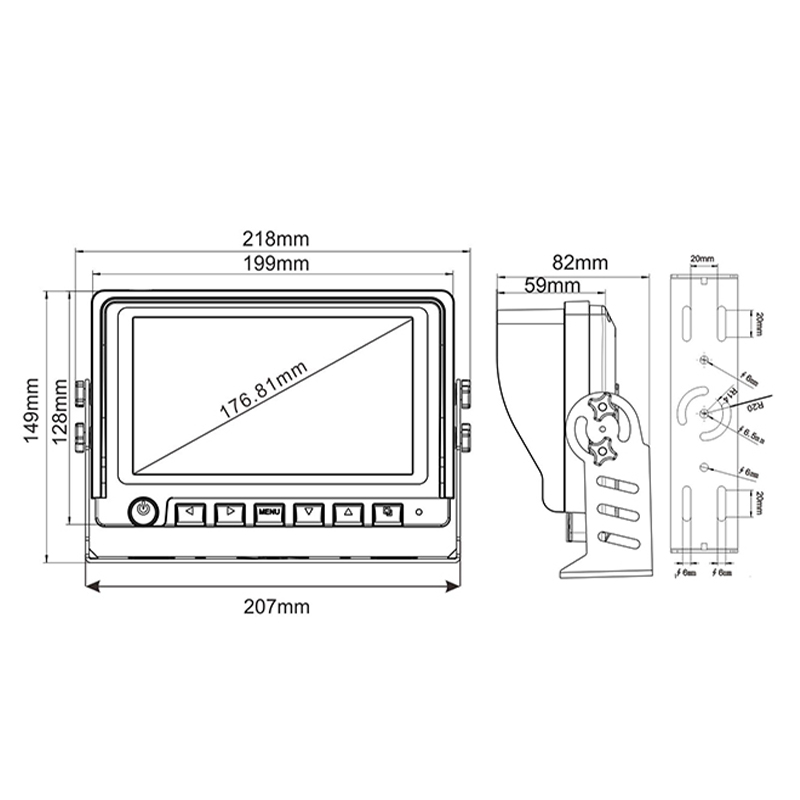

Dimensions	(L x W x T) (218 x 149 x 82mm)

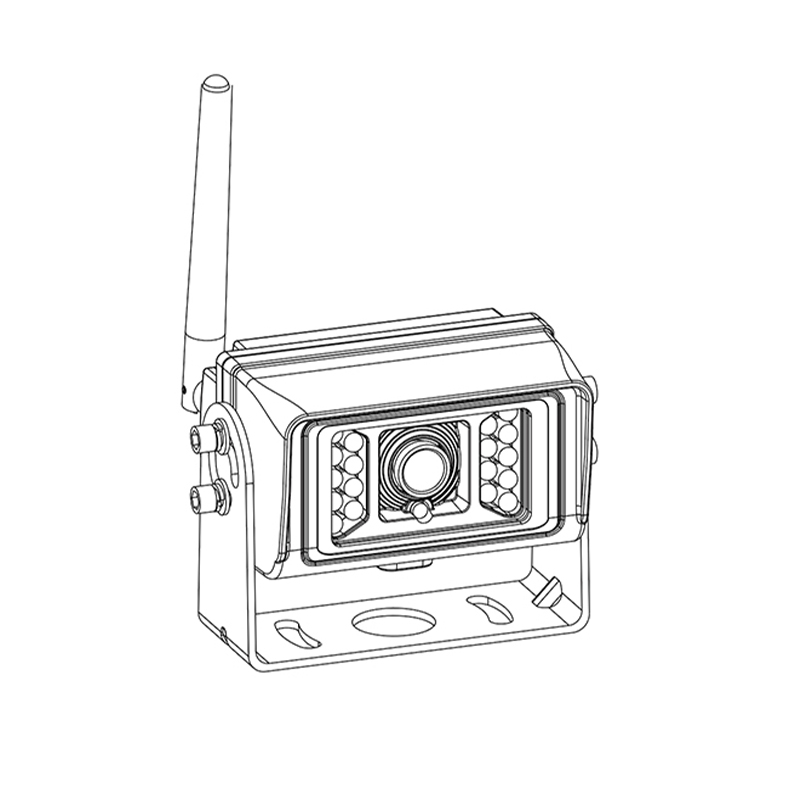

Wireless waterproof car camera (DF-8275TX-SFS)
Image Sensor	1/3.7 inch color sensor
wireless transmitter	2.4G digital
Transmit power	18dBm
Launch distance	Open space ≤50 meters
resolution	600 lines
Effective Pixels	960(H) X 480(V)pixels
Visual horizontal angle	130°
Infrared distance	15 meters
waterproof level	IP69K
Operating Voltage	DC8-32V
Operating temperature	-20℃ to +60℃
storage temperature	-30℃ to +70℃
Vibration resistance level	5G (compliant with GB-T2423056-2006 standard)
Dimensions	106(W) x 75(H) x 70.4(D)mm
