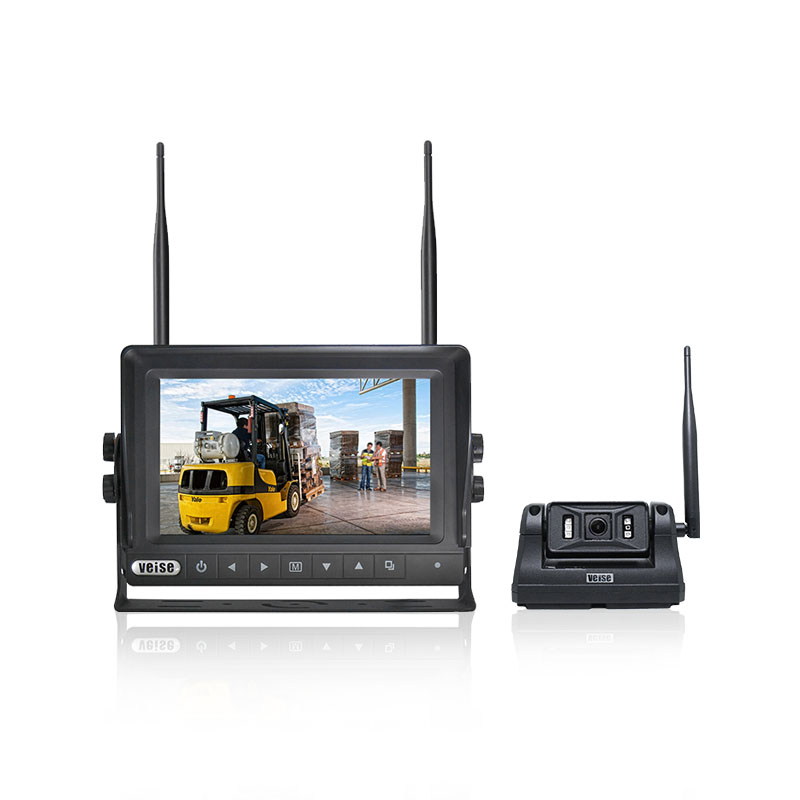

Mobile Wireless Waterproof Car Display Monitoring System

HDWS-754H362M1
The wireless monitoring system uses radio waves to transmit video, audio, control and other signals. When construction wiring is impossible or inconvenient, a wireless video monitoring system can be quickly installed. The vehicle-mounted wireless monitoring system is particularly suitable for mobile monitoring requirements such as operating forklifts, cranes, construction tower cranes, port container gantry cranes, and home and urban public security that require telescopic operation. The magnet-adsorbed car camera has a built-in lithium battery and the waterproof display is suitable for outdoor machinery, equipment, vehicles and event venues in high humidity and dusty environments, making it easy to move and install quickly.

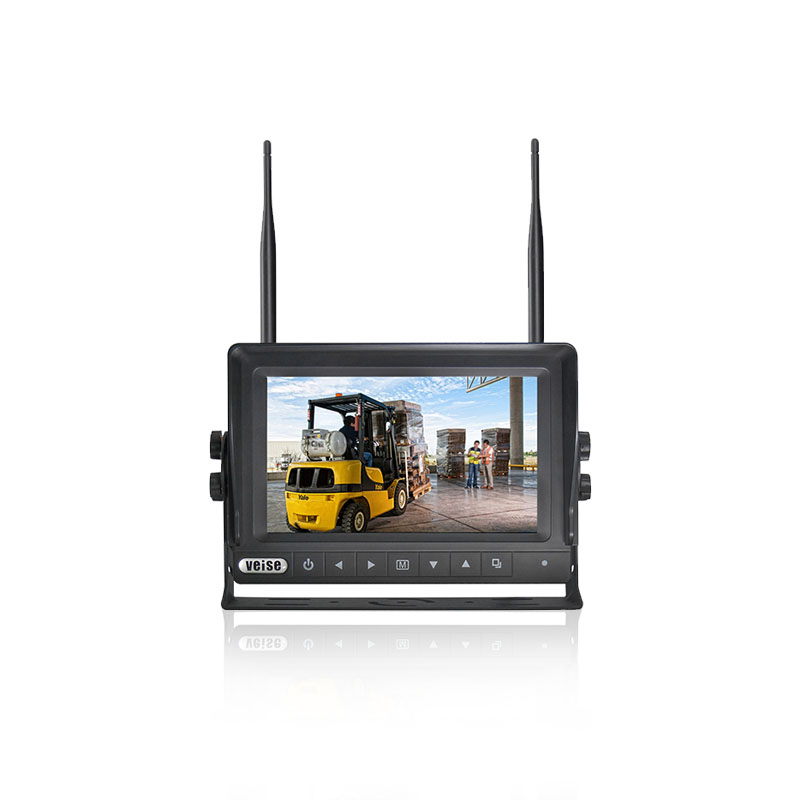

Wireless HD LCD car display
7-inch digital screen waterproof display with built-in 2.4GHz wireless receiver, 1024x600 high resolution and 600cd/㎡ high-brightness screen
Multi-frequency frequency hopping code matching, anti-channel interference, open air transmission distance of 200 meters
Automotive-grade industrial-grade DSP, graphical OSD menu to set up screen mirroring and frontal imaging, reversing scale, and trigger priority application functions
Plastic front and rear aluminum fully sealed pressure-balanced patented waterproof structure design, waterproof grade IP68
The bracket is made of rust-proof metal material, U-shaped + bilateral fastening and anti-vibration design
Wide range of operating voltage DC8~32V, load dump pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current and constant voltage protection circuit design to avoid improper use, automobile pulse voltage damage and guarantee the shelf life

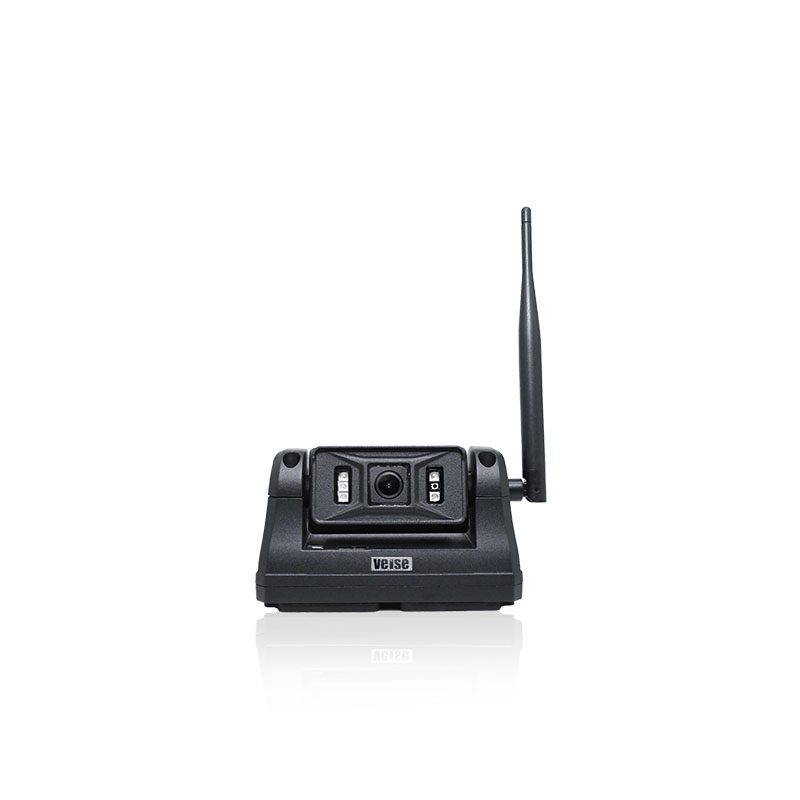

Wireless HD car waterproof camera
2.4GHz wireless mobile camera
Magnet adsorption installation, built-in 8000mAH fast-charging lithium battery, car-standard DSP, million high-definition pixels, IP69K waterproof rating, IR LED night vision function
Product parameters

Waterproof wireless high-definition LCD car display (MWHD-754H)

Color LCD display

7-inch IPS screen

wireless reception

Built-in 2.4G wireless receiver

Picture mode

1/2/3/4 picture mode

working frequency

2400~2483.5MHZ

Receive sensitivity

≤-86dB

Receiving distance

Open space ≤ 200 meters

Multi-frequency automatic frequency hopping channel code selection

80

resolution

1024(H) X 600(V)dot

color format

PAL/NTSC (AUTO)

Brightness(cd/m2)

600

load dump

ISO16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms)

Protection level

IP68

Vibration resistance level

5GB∕T 2423.56-2018 standard (random 5G vibration)

Operating temperature

-20℃ to +70℃

storage temperature

-30℃ to +80℃

Operating Voltage

DC8-32V

Dimensions

(L x W x T) (218 x 150 x 54mm)

1080P wireless high-definition built-in battery car waterproof magnetic mobile camera (CWHD-362M)

Image Sensor

1/2.9 Color DSP

wireless transmission

Built-in 2.4G digital wireless transmitter

Transmit power

18dBm

Launch distance

Open space ≤ 200 meters

resolution

1080P

Effective Pixels

1280(H) X 960(V)

Viewing angle

130°

Infrared distance

5 meters

Shell material+

Aluminum alloy

waterproof level

IP69K

Cell type

lithium polymer battery

Product capacity

8000maH(3.7v) 29.6Wh

Interface input

Type-C waterproof interface (with QC2.0 fast charging protocol) 12V/1.5A

Power display

Fast charging indicator light and 25%-50%-75%-100% battery indicator light

battery switch

touch switch

Charging cycle temperature

0℃~+40℃

Number of charge and discharge

>800 times

Discharge time

about 20 hours

Installation method

Silicone magnetic base installation

Operating temperature

-10℃ to +60℃

storage temperature

-20℃ to +70℃

Vibration resistance level

5G (compliant with GB-T2423056-2006 standard)

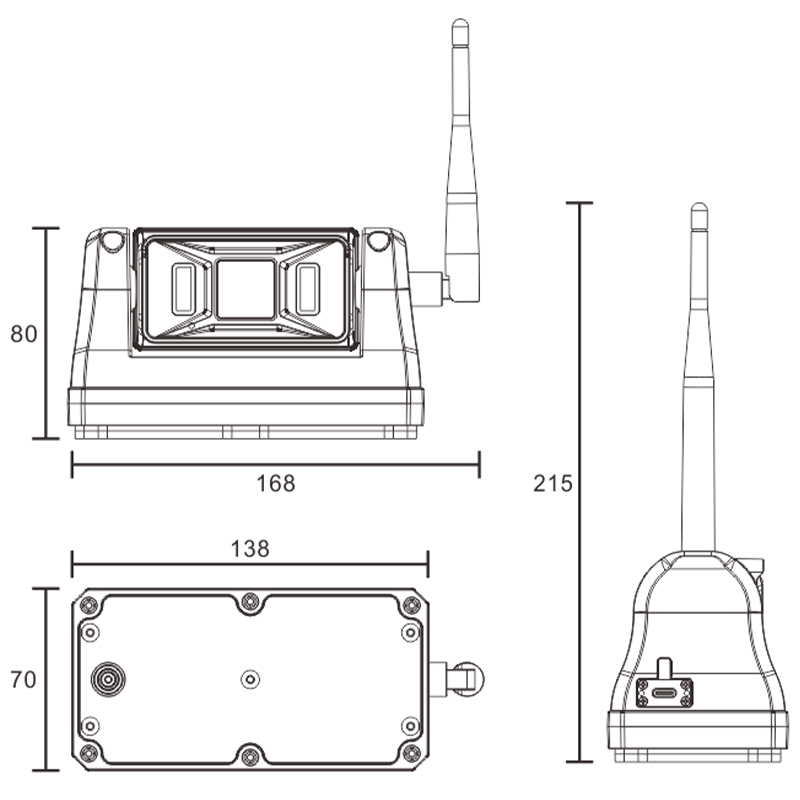

Dimensions

138(W) x 80(H) x 70(D) mm (without antenna)
