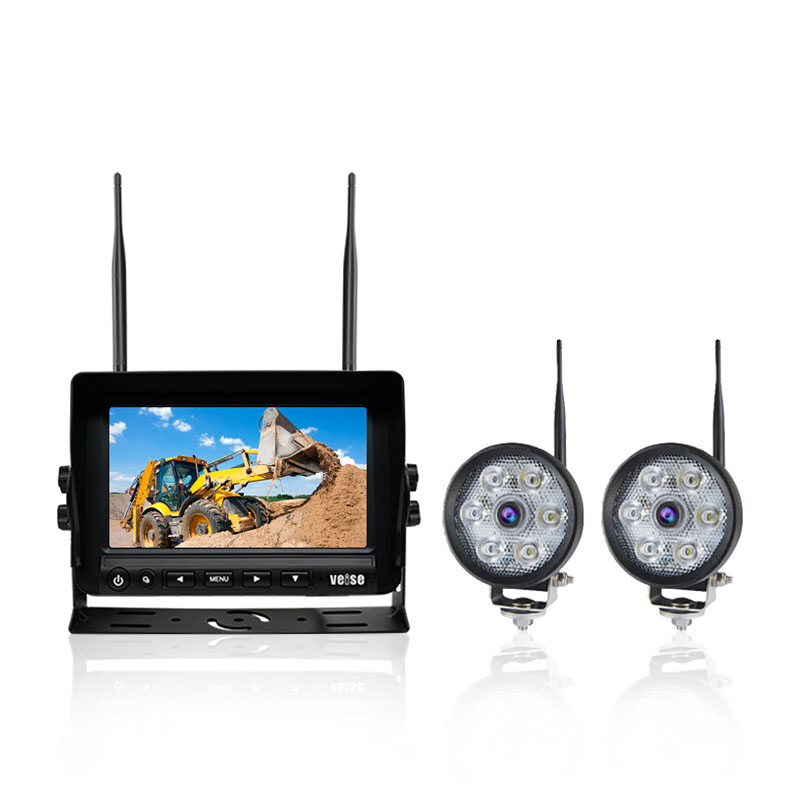

Car Light Wireless Camera Vehicle Monitoring System

Car Light Wireless Camera Vehicle Monitoring System

HDWS-774H262M2
Engineering machinery and equipment vehicles, agricultural machinery and equipment vehicles, municipal sanitation and cleaning vehicles, etc. have the characteristics of wide vehicle bodies, long axles, and high driving positions. There are large driving visual safety blind spots around the vehicles. Especially when working at night, visibility is low and safety risks around the vehicle body increase. The car light wireless camera monitoring system integrates the wireless camera and car lights into an integrated design, eliminating the complicated construction of separate wiring. The wireless camera combined with the powerful 18W LED car light fills light to make vehicle driving at night safer and more efficient.

Consult

Features Technical Indicators Overall Dimension

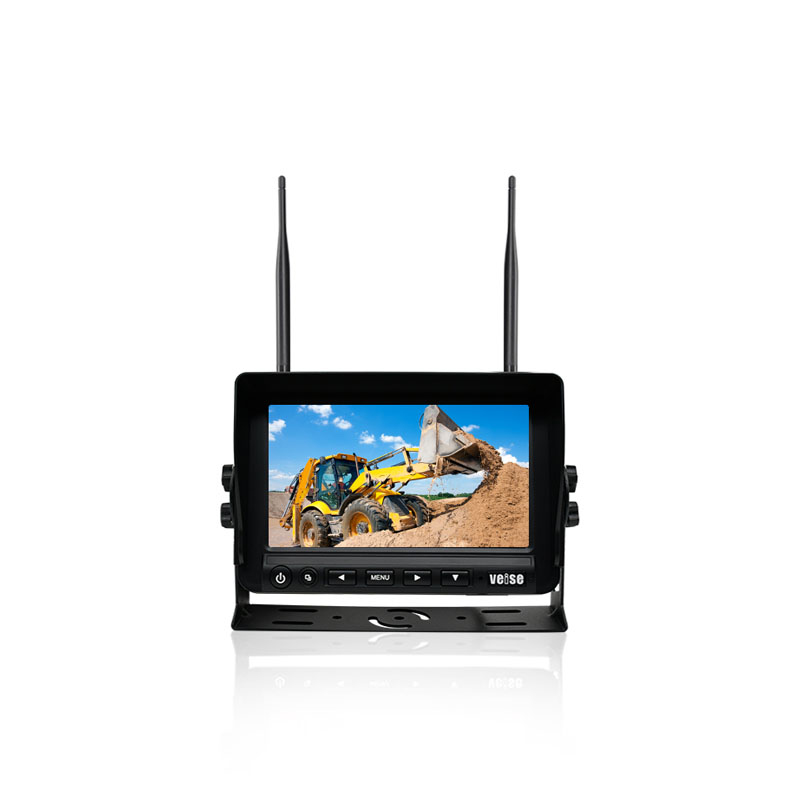

Wireless HD LCD car display
7-inch digital screen display with built-in 2.4GHz wireless receiver, 1024x600 high resolution and 600cd/㎡ high-brightness screen
Multi-frequency frequency hopping code matching, anti-channel interference, open air transmission distance of 200 meters
Automotive-grade industrial-grade DSP, graphical OSD menu to set up screen mirroring and frontal imaging, reversing scale, and trigger priority application functions
The bracket is made of rust-proof metal material, U-shaped + bilateral fastening and anti-vibration design
Wide range of operating voltage DC8~32V, load dump pulse voltage circuit design, reverse connection protection circuit design, LED thermal response constant current and constant voltage protection circuit design to avoid improper use, automobile pulse voltage damage and guarantee the shelf life.

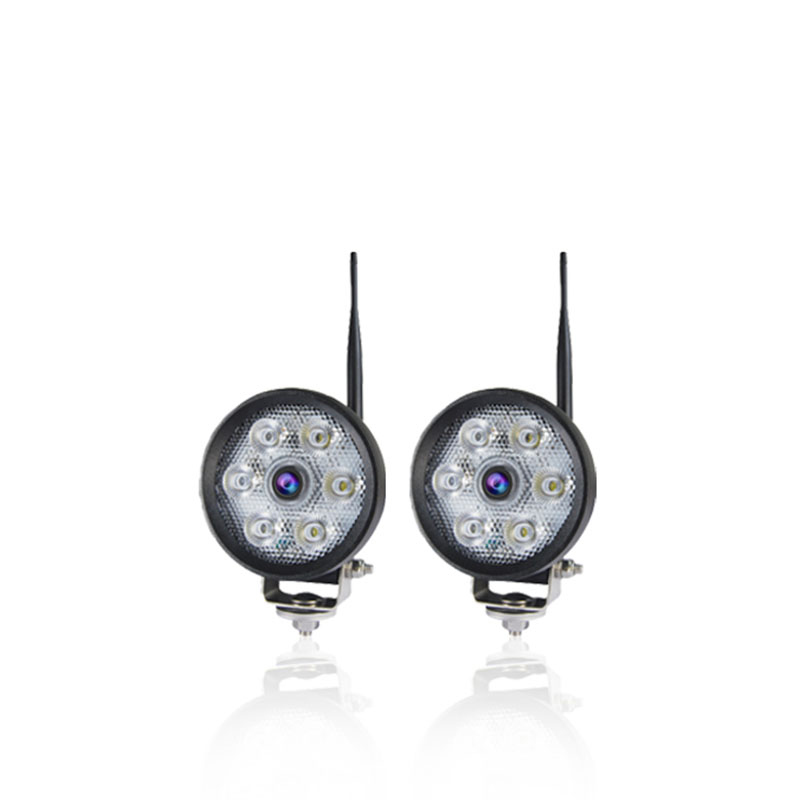

Wireless HD car waterproof camera

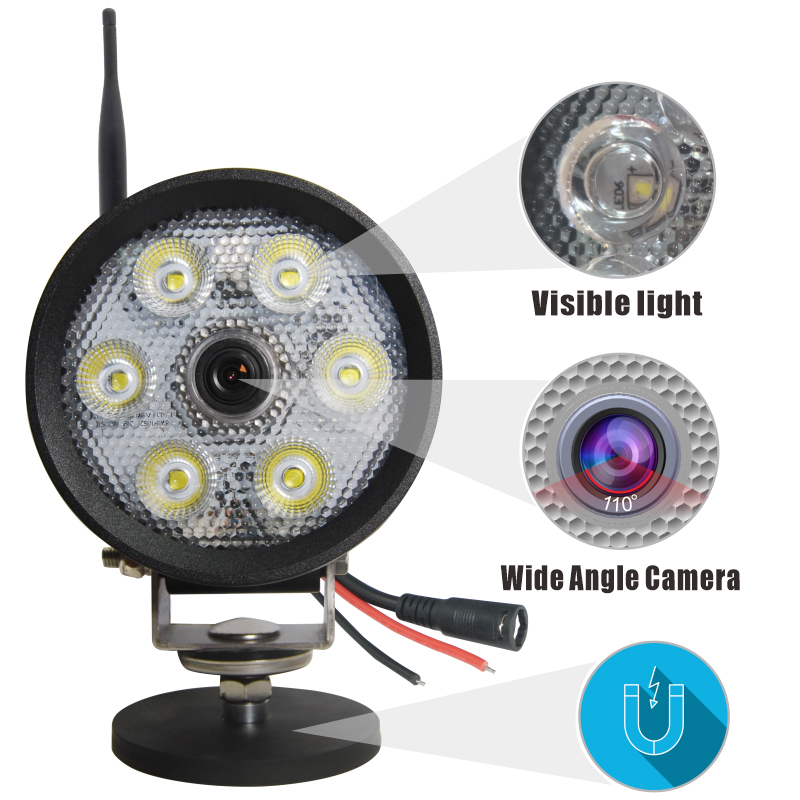

The wireless car light camera is an integrated design of a high-definition camera and an 18W work light to solve the safety hazards caused by insufficient infrared light of surveillance cameras when construction machinery and equipment vehicles operate at night.
18W LED and LED aluminum-based circuit boards are equipped with wide-range operating voltage DC10-30V circuits, reverse polarity, automotive pulse voltage protection circuits and electronic thermal management control circuits to ensure product stability.
PMMA acrylic lens, aluminum alloy fish scale heat dissipation shell, fully sealed pressure balance patent and shock-resistant design, waterproof grade IP69K.
Product parameters

High Definition Wireless Car Display (MWHD-774H)
Color LCD display	7-inch IPS screen
wireless reception	Built-in 2.4G wireless receiver
Picture mode	Single screen/dual screen/triple screen/quad screen
working frequency	2400~2483.5MHZ
Receive sensitivity	≤-86dB
Receiving distance	Open space ≤ 200 meters
Multi-frequency automatic frequency hopping channel code selection	80
resolution	1024(H) X 600(V)dot
color format	PAL/NTSC (AUTO)
Brightness(cd/m2)	600
Anti-load dump pulse voltage	24V system Us=174V, Ri= 4Ω, td=350ms (ISO16750-2 standard))
Vibration resistance level	GB/T 2423.56-2018 standard (random 5G vibration)
Operating temperature	-20℃ to +70℃
storage temperature	-30℃ to +80℃
Operating Voltage	DC8-32V
Dimensions	(L x W x T) (216 x 150 x 80mm)
Wireless HD Car Waterproof Camera (CWHD-262M)
Image Sensor	1/3.7 Color DSP
wireless transmission	Built-in 2.4G digital wireless transmitter
Transmit power	18dBm
Launch distance	Open space ≤ 200 meters
resolution	1080P
Effective Pixels	1920(H) X 1080(V)
Work light power	18w(6pcs LED3w CREE)
Working light flux	>1150lm
Viewing angle	130°
shell material	Die-cast aluminum alloy shell + PMMA lens
Temperature control function	Built-in constant temperature control circuit design
waterproof level	IP69K
Operating Voltage	DC8-32V
Operating temperature	-20℃ to +60℃
storage temperature	-30℃ to +70℃
Vibration resistance level	GB/T 2423.56-2018 standard (random 5G vibration)

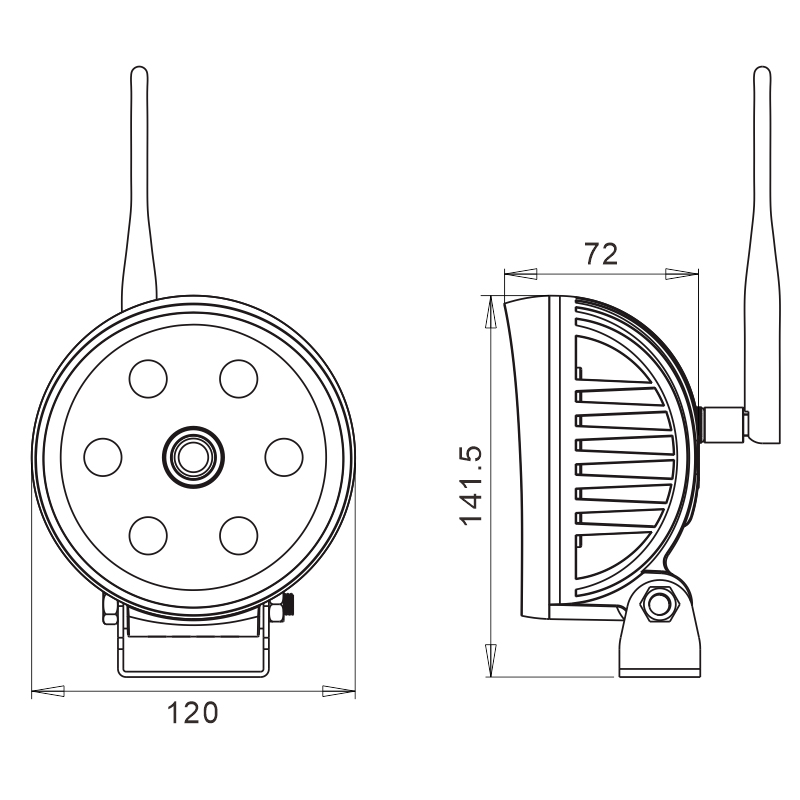

Dimensions	72(W) x 141.5(H) x 120(D) mm
