14.5-Inch 360 Panoramic System Early Warning System

14.5-Inch 360 Panoramic System Early Warning System

HD3D-1451HTPH8AI56Z6-HDMI

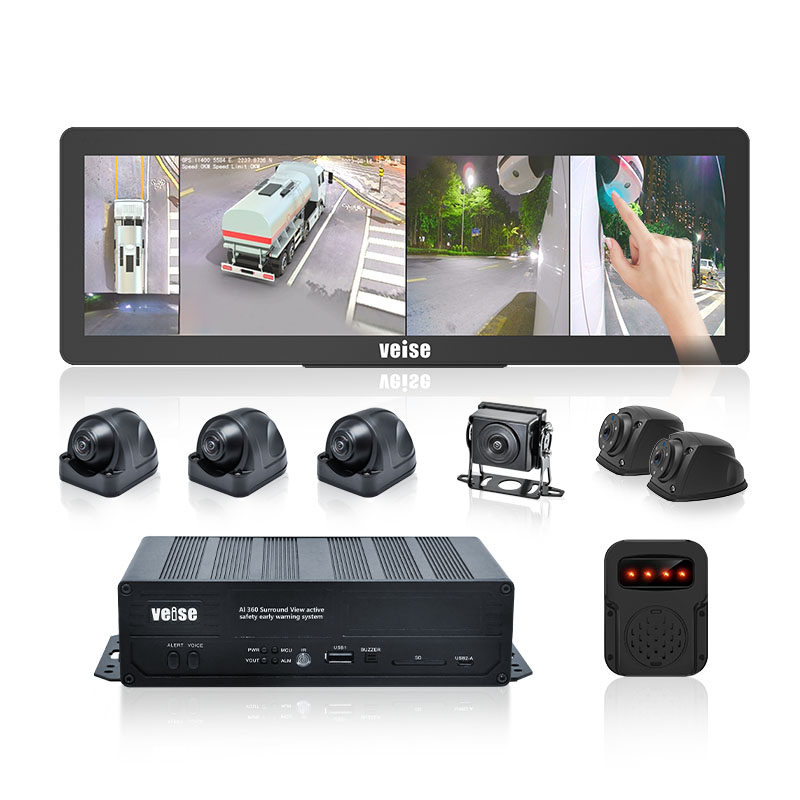

Engineering machinery and equipment vehicles, agricultural machinery and equipment vehicles, municipal sanitation sweepers, trailers, etc. have the characteristics of wide vehicle bodies, long axles, and high driving positions. There are large driving visual safety blind spots around the vehicles. A single camera and multi-image rearview system cannot meet the requirements of multiple monitoring areas. The 360 panoramic pedestrian and vehicle detection and warning system consists of six wide-angle starlight full-color cameras installed in all four directions of the vehicle. It uses a 360° AI vision algorithm to synthesize a panoramic bird's-eye view of the vehicle's surroundings and display left and right real-time images on the monitor. When there are pedestrians and vehicles around the vehicle, the system's on-board display screen and audible and visual alarms are linked to provide early warning, providing the driver with intuitive safety prompts and making the vehicle's driving safer and more efficient.

Consult

Features Technical Indicators Overall Dimension

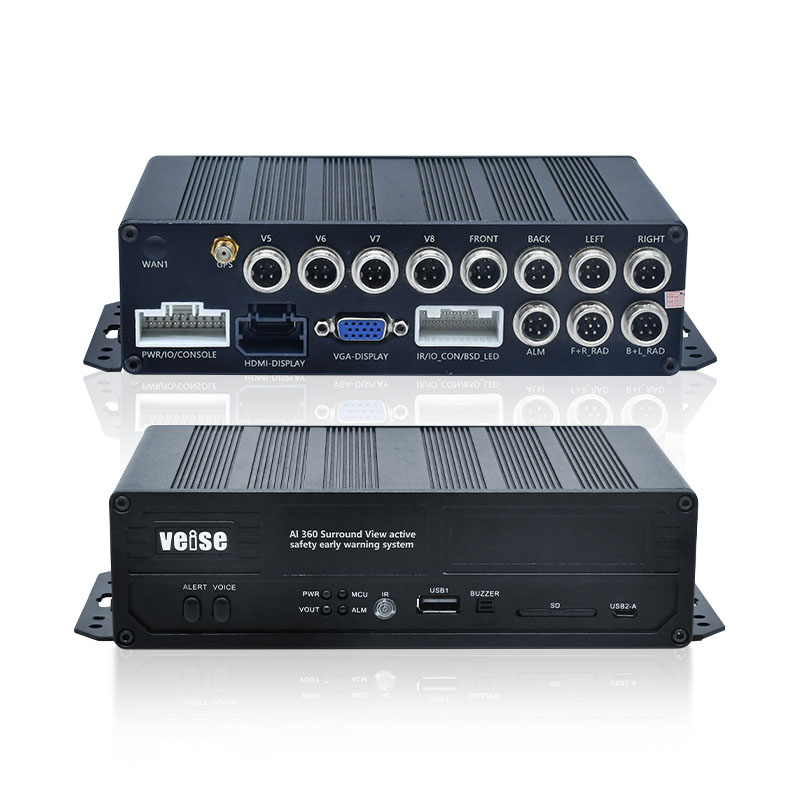

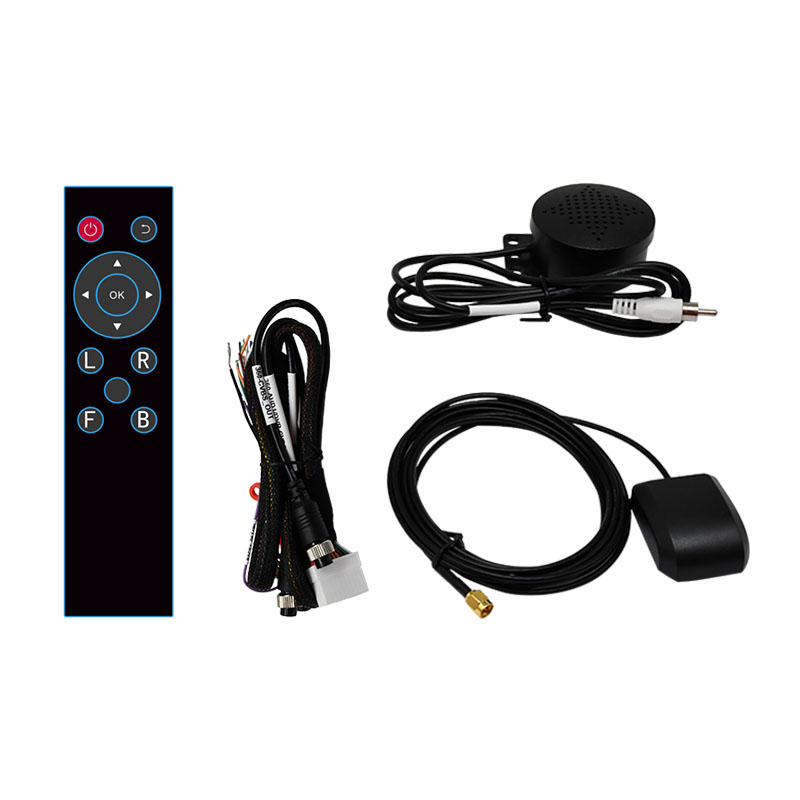

AVM panoramic view host
Around View Monitor-AVM
A system that captures images through multiple (usually four) ultra-large wide-angle cameras and performs distortion correction and splicing on the captured images through special algorithms to form a panoramic image around the object. Intelligent (automatic, manual) fast splicing, turn signal automatic switching of driving 3D/2D images, intelligent voice control 12 image display modes, detection and early warning of safe distances for pedestrians and vehicles around the vehicle, achieving 360° no blind spots and anti-collision
When the vehicle speed is lower than 25 km/h, the system automatically switches to the warning screen, the steering lane change assist warning screen, and is linked to the audible and visual alarm outside the vehicle.
Supports 4 channels of AHD panoramic camera input, and can be expanded to 2 channels of surveillance cameras, supports 16 channels of radar probe input, supports flameout alarm function, and supports CAN bus communication protocol
Support real-time recording, loop recording, video playback (SD card + MSATA storage method)
14.5-inch HD touchscreen display
IPS widescreen, automotive-grade industrial-grade DSP, 2560RGB(H) X 420(V)dot resolution, HDMI video input
The light sensor automatically controls the daytime/nighttime brightness mode switching of the screen to prevent the screen brightness from affecting driving safety at night.
DC8~32V wide range operating voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection to avoid improper use and guarantee the shelf life.

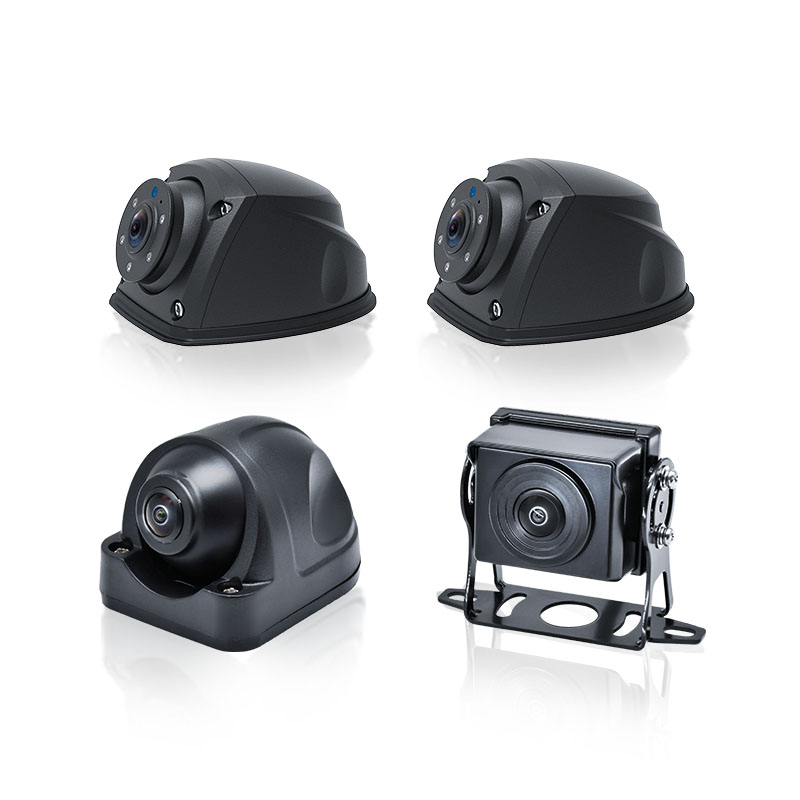

AHD panoramic camera
210° super wide angle, car-standard DSP, 2 million high-definition pixels, IP69K waterproof rating, starlight full color, cold-resistant and waterproof signal output line
Product parameters

touch screen monitor	model	MHD-1451HTP
	Display	14.5 inches (32:9)
	resolution	2560*720
	brightness	800cd/m2 (day mode brightness 90%, night mode brightness 50%)
	perspective	80/80/80/70 (left/right/up/down)
	video input	HDMI
	Capacitive touch screen	Anti-glare, anti-fingerprint
	Operating Voltage	DC10.8-33V
	Operating temperature	-20℃~+70℃
	storage temperature	-30℃~+80℃
	Vibration/Shock	GB/T 2423.56-2018 standard (random 5G vibration)
	size	382.513230 (not including bracket)

360 host	model	DF-3DH8AI-HDMI
	Power consumption	10-30W
	video output	CVBS/HDMI
	video input	4-channel 1080P panoramic camera + 4-channel AHD surveillance camera
	Early warning function	Four-directional BSD blind spot detection and early warning
	Video recording function	2.5-inch HDD/SSD (128G-2TB)/SD card (8-512GB)
	video format	H265
	Video resolution	1920*1080P
	File capacity	1.25GB/hour
	Operating temperature	-20℃~+70℃
	storage temperature	-40℃~+80℃
	Vibration/Shock	GB/T 2423.56-2018 standard (random 5G vibration)
	Dimensions (mm)	10517850
	weight	0.65KG
Radar host [optional]	radar warning	Ultrasonic radar supporting 16 probes
	Detection distance	2.5 meters
	Power parameters	DC12-33V/0.2W
	Radar function	Blind Spot Monitoring (BSD) + Lane Change Assist (LCA) + Parking Assist
CAN communication [optional]	Functions and features	High-speed CAN bus transceiver, compliant with ISO11898 standard, low power consumption management, network wake-up function (display mode, AI alarm data output)

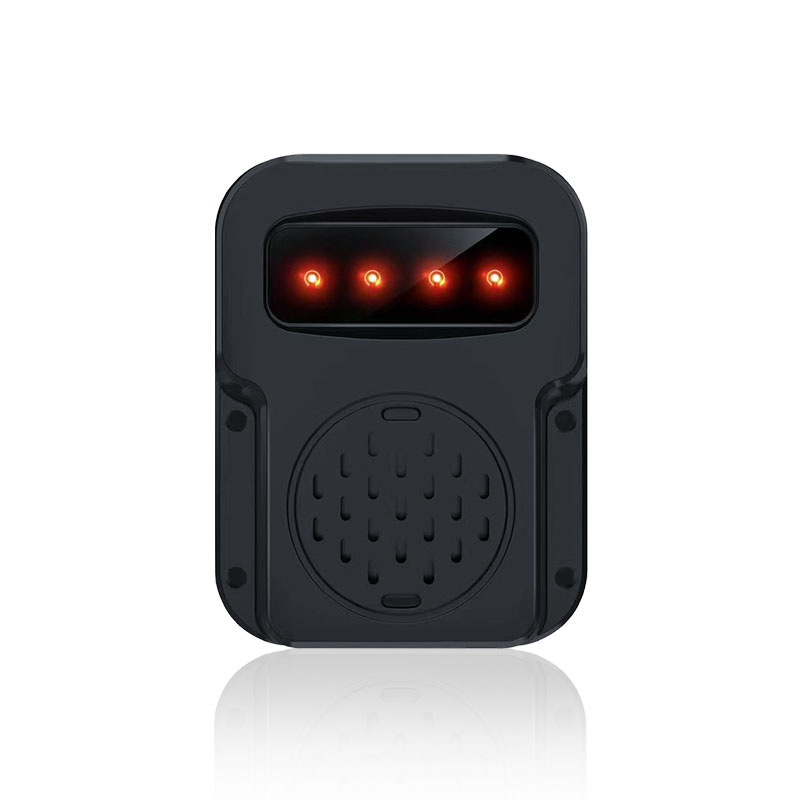

Sound and light alarm [optional]	Specifications	DC12-36V/3W, protection grade IP65.16, adjustable volume

panoramic camera	model	CHD-806Z
	Operating Voltage	DC8-16V
	resolution	1080P
	Operating temperature	-20℃~+60℃
	Video frame rate	25 FPS/30 FPS
	waterproof level	IP68
	low illumination	0.01 Lux
	Vibration/Shock	GB/T 2423.56-2018 standard (random 5G vibration)
	horizontal angle	210 degrees
	vertical angle	126 degrees
