10.1-Inch 360 Panoramic Pedestrian And Vehicle Detection And Warning System

10.1-Inch 360 Panoramic Pedestrian And Vehicle Detection And Warning System

HD3D-1019TPCH8AI805Z4-HDMI

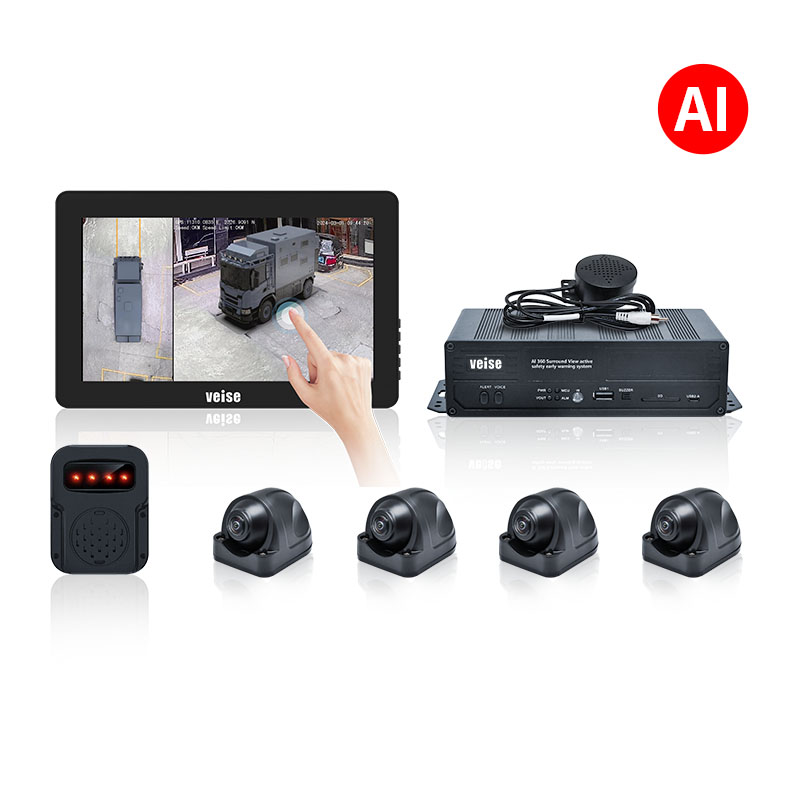

Engineering machinery and equipment vehicles, agricultural machinery and equipment vehicles, municipal sanitation and cleaning vehicles, etc. have the characteristics of wide vehicle bodies, long axles, and high driving positions. There are large driving visual safety blind spots around the vehicles. A single camera and multi-image rearview system cannot meet the requirements of multiple monitoring areas. The 360 panoramic pedestrian and vehicle detection and warning system is composed of four wide-angle starlight full-color cameras installed in the four directions of the vehicle, and uses a 360° AI vision algorithm to synthesize a panoramic bird's-eye view of the surroundings of the vehicle. When there are pedestrians and vehicles around the vehicle, the system's on-board display screen and audible and visual alarms are linked to provide early warning, providing the driver with intuitive safety prompts and making the vehicle's driving safer and more efficient.

Consult

Features Technical Indicators Overall Dimension

AI high-definition wireless camera automatically detects pedestrians, vehicle warning, and blind spot monitoring (BSD) functions.
Car-grade DSP, million high-definition pixels, starlight full color, IP69K waterproof rating, all-weather work.
10.1-inch IPS touch screen wireless display, single screen + 2 split screen switching, customizable screen warning area (adjustable up, down, left and right).
The display has a built-in early warning microphone and a three-level alarm logo frame to adapt to different application scenarios.
Multi-frequency frequency hopping automatic coding, anti-channel interference, open air transmission distance of 200 meters.
The display wirelessly synchronously controls the standby and working power supply voltage of the wireless camera (power saving mode).
Product parameters

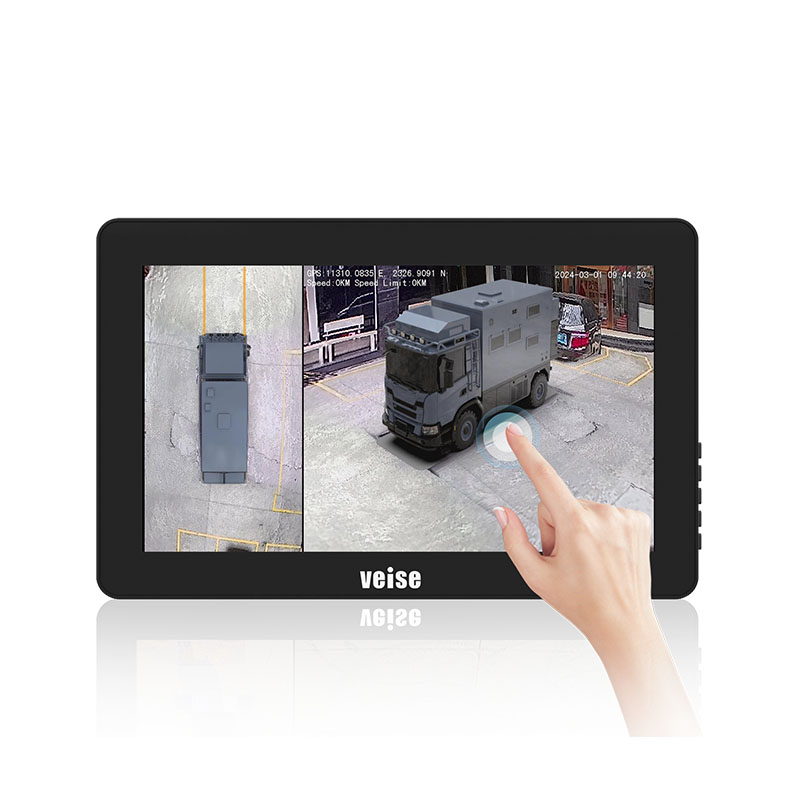

10.1-inch high-definition touch screen wireless display (MWHD-1012MTP-AI)
Color LCD car display	10.1 inch IPS HD touch screen
Wireless reception	Built-in 2.4G wireless receiver
resolution	1024RGB(H) X 600(V)
Viewing angle	Up, down, left and right: 85°
Operating frequency	2400~2483.5MHz
Receive sensitivity	≤86dBm
Transmission distance	Empty ≤ 200 meters
Standard	PAL/NTSC
Display mode	Support single/two-screen display
Pedestrian vehicle detection	Pedestrians and non-motorized vehicles will be alerted when they approach the area
Alarm area calibration	Customize the alert area
Vibration resistance rating	GB/T 2423.56-2018 (random 5G vibration)
Operating temperature	-20℃~+70℃
Storage temperature	-30℃~+80℃
Operating voltage	DC8-32V
Dimensions (L x W x T)	266.5X167.8X36.7（mm）
Installation:	360° gimbal base car mount

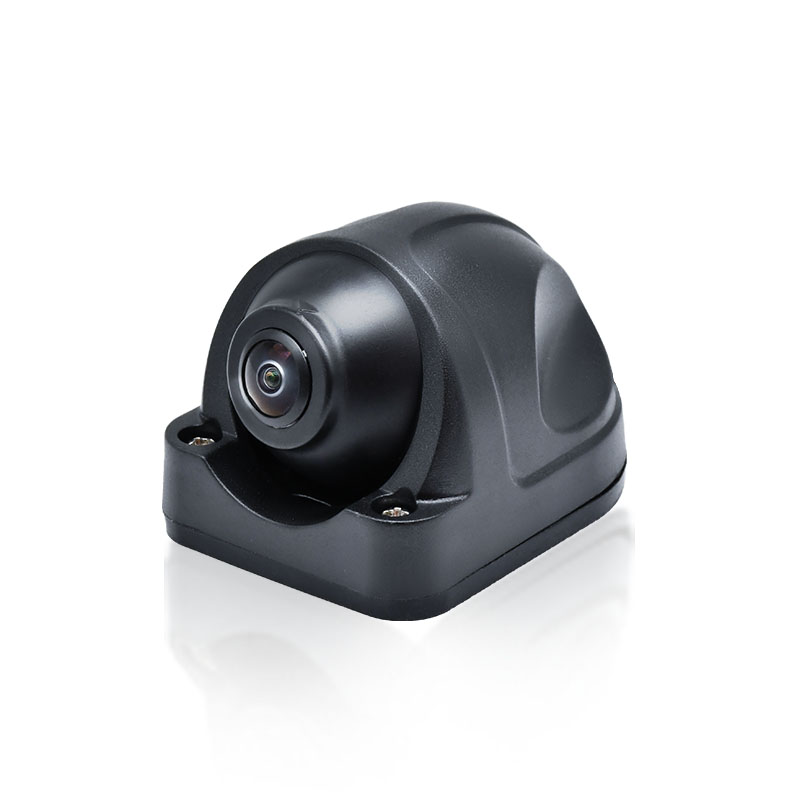

Wireless HD Car Waterproof Camera(CWHD-151M-AI)
Effective pixels	1920(H) X1080(V)
resolution	720P
Wireless transmission	Built-in 2.4G wireless transmitter
Transmit power	18dBm
Operating frequency	2400~2483.5MHz
Transmission distance	Empty ≤ 200 meters
Viewing angle	130°
Waterproof rating	IP69K
Pedestrian vehicle detection	It supports AI humanoid and vehicle model recognition
Power saving function	It can be used with a power box, and the standby current is as low as 10mA
Vibration resistance rating	Comply with GB/T2423.56-2008 standard
Operating temperature	-20℃~+60℃
Storage temperature	-30℃~+70℃
Operating voltage	DC8-32V
Dimensions (L x W x T)	91.6X75X71（mm）
