360 Panoramic Pedestrian And Vehicle Detection And Warning System (Lite Version)

360 Panoramic Pedestrian And Vehicle Detection And Warning System (Lite Version)

HD3D-779H7AI805Z4-AHD

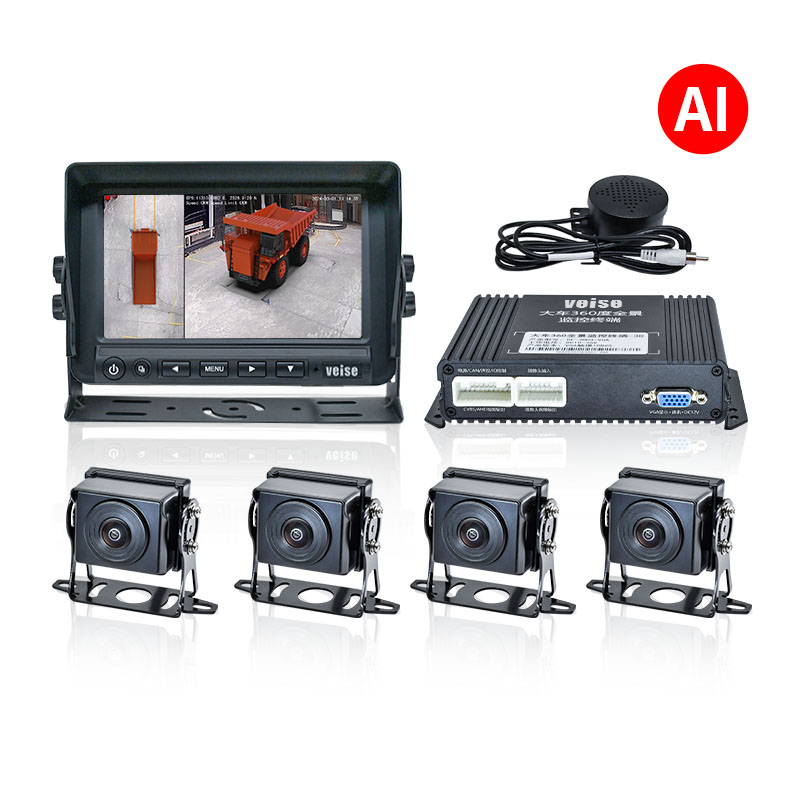

Engineering machinery and equipment vehicles, agricultural machinery and equipment vehicles, municipal sanitation and cleaning vehicles, etc. have the characteristics of wide vehicle bodies, long axles, and high driving positions. There are large driving visual safety blind spots around the vehicles. A single camera and multi-image rearview system cannot meet the requirements of multiple monitoring areas. The 360 panoramic pedestrian and vehicle detection and warning system is composed of four wide-angle starlight full-color cameras installed in the four directions of the vehicle, and uses a 360° AI vision algorithm to synthesize a panoramic bird's-eye view of the surroundings of the vehicle. When there are pedestrians and vehicles around the vehicle, the system's on-board display screen and audible and visual alarms are linked to provide early warning, providing the driver with intuitive safety prompts and making the vehicle's driving safer and more efficient.

Consult

Features Technical Indicators Overall Dimension

AVM panoramic view host (lite version)
Around View Monitor-AVM
A system that captures images through multiple (usually four) ultra-large wide-angle cameras and performs distortion correction and splicing on the captured images through special algorithms to form a panoramic image around the object. Intelligent (automatic, manual) fast splicing, turn signal automatic switching of driving 3D/2D images, intelligent voice control 12 image display modes, detection and early warning of safe distances for pedestrians and vehicles around the vehicle, achieving 360° no blind spots and anti-collision
car video recorder
Support 4-channel AHD panoramic camera input, support real-time recording, loop recording, video playback (SD card storage method)

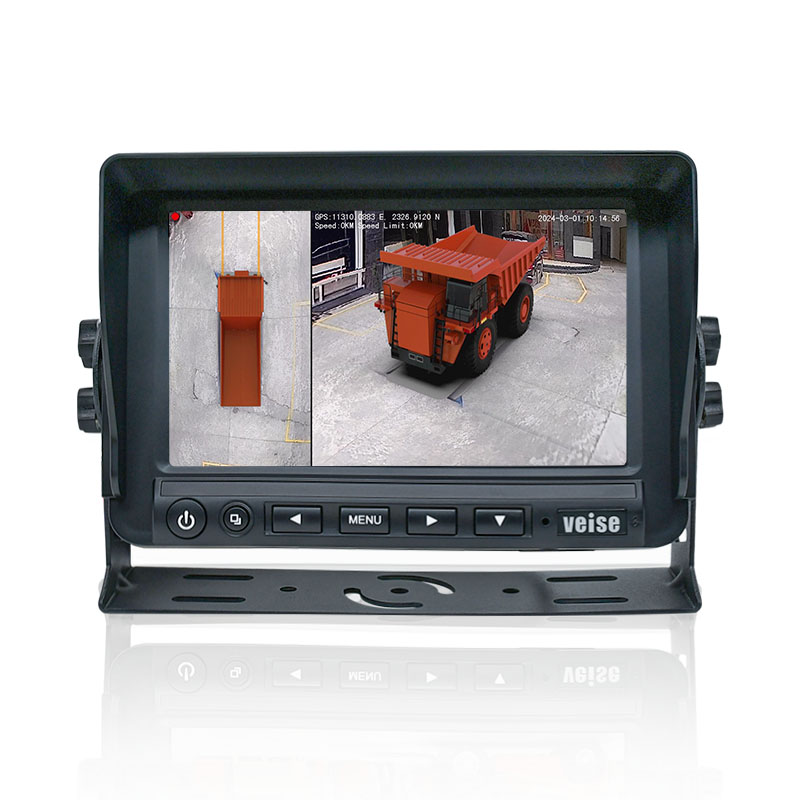

7-inch high-definition IPS screen monitor
Automotive-grade industrial-grade DSP, 1024×RGB×600 resolution
DC8~32V wide range operating voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection to avoid improper use and guarantee the shelf life.
AHD panoramic camera
210° super wide angle, car-standard DSP, 2 million high-definition pixels, IP69K waterproof rating, starlight full color, cold-resistant and waterproof signal output line
Product parameters

monitor	model	MHD-779
	Display	7-inch IPS screen
	resolution	1024×RGB×600
	brightness	600cd/m2
	perspective	85/85/85/85 (left/right/up/down)
	signal input	Support two-way AHD1080/720/CVBS video signal input
	power input	DC11-32V/5W
	power input	DC11-32V/5W
	Operating temperature	-20℃~+70℃
	storage temperature	-30℃~+80℃
	Vibration/Shock	GB/T 2423.56-2018 standard (random 5G vibration)
	Bracket	U-shaped tinplate bracket
	size	20013082mm (excluding bracket)

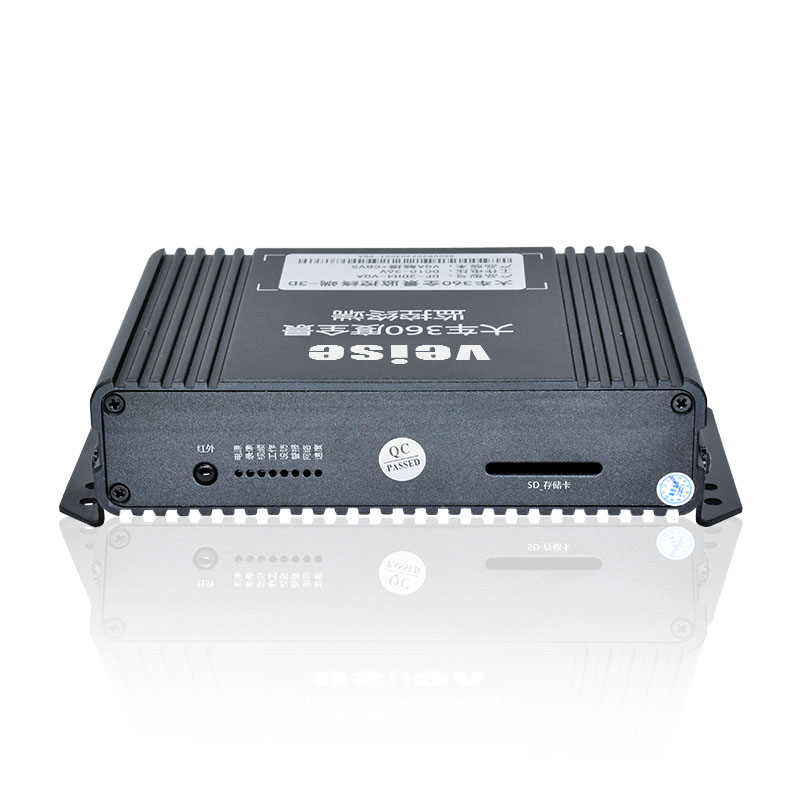

360 host	model	DF-3DH7AI-AHD
	Power consumption	10-30W
	Power protection	It has anti-surge function, anti-reverse connection function, low power protection and short circuit overload protection.
	Video output [optional]	AHD/HDMI/VGA
	video input	4 channels of 1080P_AHD panoramic camera input
	Early warning function	BSD
	Recording video format	H.265
	Video resolution	1920*1080
	Operating temperature	-20℃~+70℃
	image storage	SD card 8-512GB
	Vibration/Shock	GB/T 2423.56-2018 standard (random 5G vibration)
	Dimensions (mm)	10013029 (lengthwidthheight)
	weight	400g

panoramic camera	model	CHD-805Z
	resolution	1080P
	Operating temperature	-20℃~+60℃
	waterproof level	IP68
	low illumination	0.01 Lux
	Vibration/Shock	GB/T 2423.56-2018 standard (random 5G vibration)
	horizontal angle	210 degrees
	vertical angle	126 degrees
	Voltage input	DC8-16V
