360 Panoramic Pedestrian And Vehicle Detection And Warning System

360 Panoramic Pedestrian And Vehicle Detection And Warning System

HD3D-779H8AI802Z4-AHD

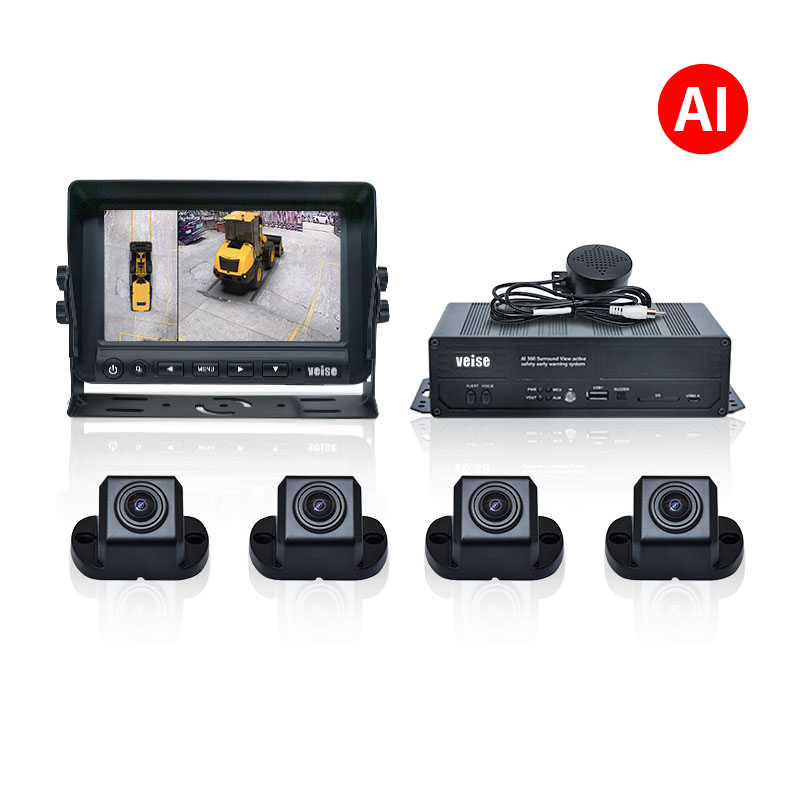

Engineering machinery and equipment vehicles, agricultural machinery and equipment vehicles, municipal sanitation and cleaning vehicles, etc. have the characteristics of wide vehicle bodies, long axles, and high driving positions. There are large driving visual safety blind spots around the vehicles. A single camera and multi-image rearview system cannot meet the requirements of multiple monitoring areas. The 360 panoramic pedestrian and vehicle detection and warning system is composed of four wide-angle starlight full-color cameras installed in the four directions of the vehicle, and uses a 360° AI vision algorithm to synthesize a panoramic bird's-eye view of the surroundings of the vehicle. When there are pedestrians and vehicles around the vehicle, the system's on-board display screen and audible and visual alarms are linked to provide early warning, providing the driver with intuitive safety prompts and making the vehicle's driving safer and more efficient.

Consult

Features Technical Indicators Overall Dimension

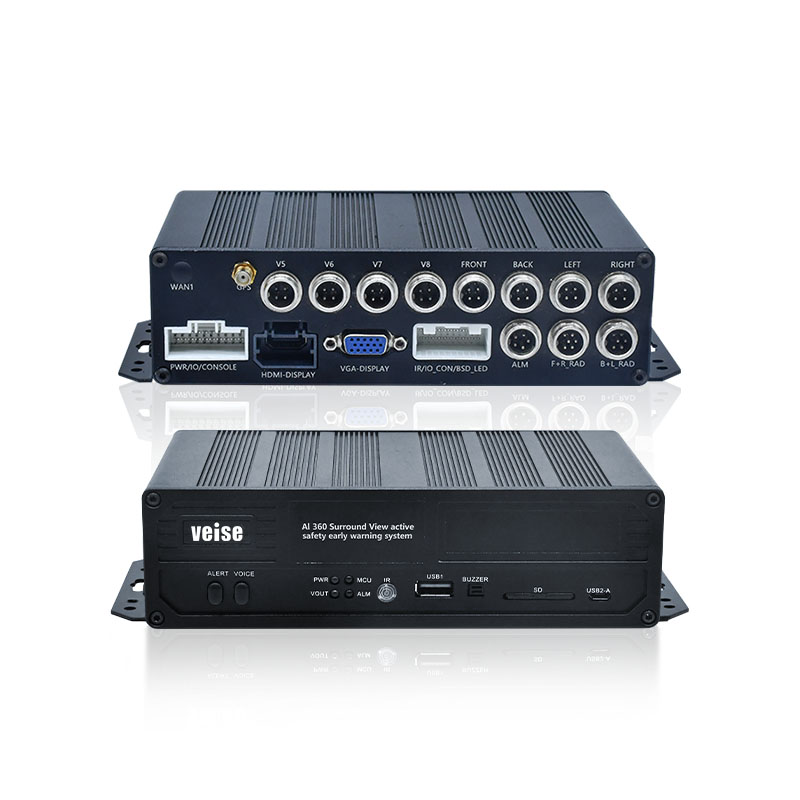

AVM panoramic view host
Around View Monitor-AVM
A system that captures images through multiple (usually four) ultra-large wide-angle cameras and performs distortion correction and splicing on the captured images through special algorithms to form a panoramic image around the object. Intelligent (automatic, manual) fast splicing, turn signal automatic switching of driving 3D/2D images, intelligent voice control of 12 image display modes, detection and early warning of safe distances for pedestrians and vehicles around the vehicle, achieving 360° collision avoidance without blind spots.
When the vehicle speed is lower than 25 km/h, the system automatically switches to the warning screen and the steering lane change assist warning screen.
Supports 4-channel AHD panoramic camera input (another 4-channel camera can be expanded), supports 16-channel radar probe input, supports flameout alarm function, and supports CAN bus communication protocol.
Supports real-time recording, loop recording, and video playback (SD card + MSATA storage method).

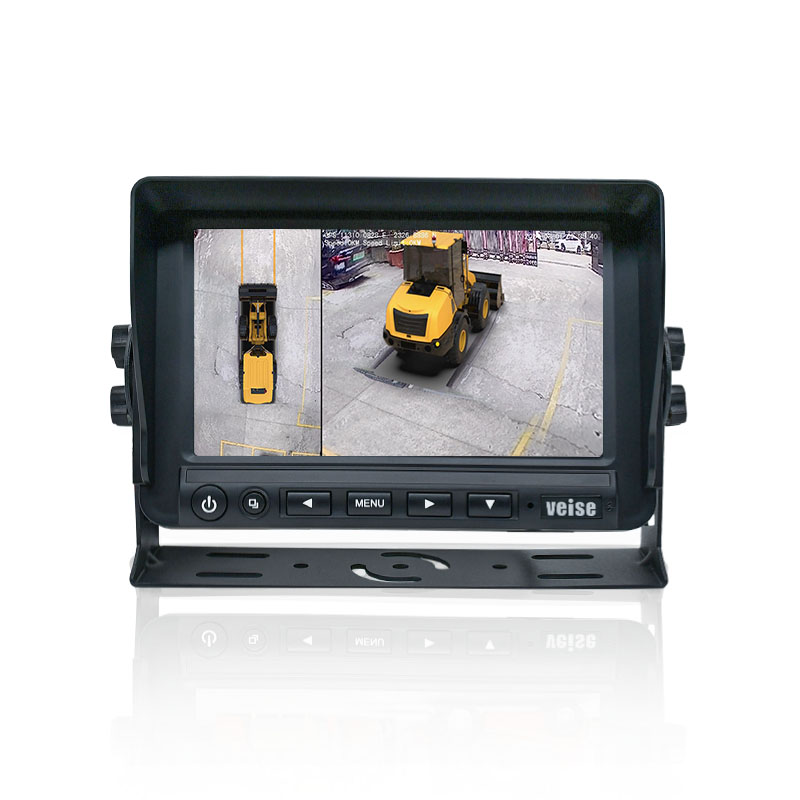

7-inch high-definition IPS screen car monitor
Automotive-grade industrial-grade DSP, 1024RGB(H) X 600(V)dot resolution.
DC8~32V wide range operating voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection to avoid improper use and guarantee the shelf life.
AHD panoramic car camera
210° super wide angle, car-standard DSP, 2 million high-definition pixels, IP69K waterproof rating, starlight full color, cold-resistant and waterproof signal output line.
Product parameters

Monitor	Model	MHD-779
	Display	7-inch IPS screen
	Resolution	1024*600
	Brightness	600cd/m2.
	Perspective	80/80/80/70 (left/right/up/down)
	Signal Input	Support two-way AHD1080/720/CVBS video signal input
	Operating Voltage	DC11-32V/5W
	Operating Temperature	-20℃~+70℃
	Storage Temperature	-30℃~+80℃
	Vibration/Shock	GB/T 2423.56-2018 standard (random 5G vibration)
	Size	20013082mm (excluding bracket)

DVR/360 Host	model	DF-3DH8AI-AHD
	Power consumption	10-30W
	video output	CVBS/HD
	video input	4-channel AHD panoramic camera + 4-channel AHD camera
	Early warning function	Blind Spot Surveillance (BSD)
	Video recording function	2.5-inch HDD/SSD(128G-2TB)/SD(8-512GB)
	video format	H265
	Video resolution	1920*1080P
	File capacity	1.25GB/hour
	Operating temperature	-20~70℃
	storage temperature	-40~80℃
	Vibration/Shock	GB/T 2423.56-2018 standard (random 5G vibration)
	size	Lengthwidthheight=10517850 (unit: mm)
	weight	0.65KG
Radar [optional]	radar warning	Ultrasonic radar supporting 16 probes
	Detection distance	2.5 meters
	Power parameters	DC12-33V/0.2W
	Radar function	Vehicle Blind Spot (BSD) + Lane Change Assist (LCA) + Parking Assist
CAN communication [optional]	Functions and features	High-speed CAN bus transceiver, compliant with ISO11898 standard, low power consumption management, network wake-up function (display mode, AI alarm data output)
Sound and light alarm [optional]	Specifications	DC12-36V/3W, protection grade IP65.16 level, adjustable volume, RS485 communication

panoramic camera	model	CHD-802Z
	Operating Voltage	DC8-16V
	resolution	1080P
	Operating temperature	-20℃~+60℃
	Video frame rate	25 FPS/30 FPS
	waterproof level	IP68
	low illumination	0.01 Lux
	Vibration/Shock	GB/T 2423.56-2018 standard (random 5G vibration)
	horizontal angle	210 degrees
	vertical angle	126 degrees
