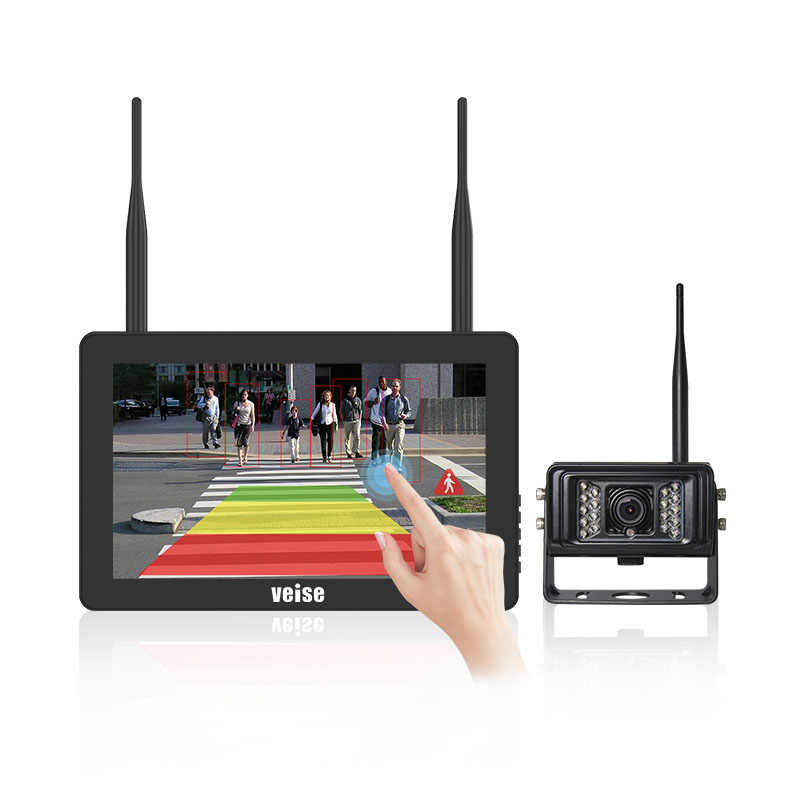

10.1-Inch Wireless AI Vehicle Monitoring System

10.1-Inch Wireless AI Vehicle Monitoring System

HDWS-1012MTP151MLP1-AI
Although the vehicle-mounted wireless monitoring system solves the tedious wiring problems of traditional monitoring equipment, because the driver needs to be highly concentrated in operating the vehicle's mechanical equipment and has no time to observe the vehicle's rear-view display screen, especially when there is no reversing radar warning, it is easy to cause safety hazards and lead to economic losses. loss. The AI wireless vehicle driving detection pre-system not only eliminates the complicated installation process of wiring the wired rear view system and reversing radar, but also can detect surveillance areas and people and vehicles in real time, and provide icons and sound warnings in real time - BSD function to improve the efficiency of vehicle operation. and eliminate safety hazards and avoid economic losses.

Consult

Features Technical Indicators Overall Dimension

AI high-definition wireless camera automatically detects pedestrians, vehicle warning, and blind spot monitoring (BSD) functions.
Car-grade DSP, million high-definition pixels, starlight full color, IP69K waterproof rating, all-weather work.
10.1-inch IPS touch screen wireless display, single screen + 2 split screen switching, customizable screen warning area (adjustable up, down, left and right).
The display has a built-in early warning microphone and a three-level alarm logo frame to adapt to different application scenarios.
Multi-frequency frequency hopping automatic coding, anti-channel interference, open air transmission distance of 200 meters.
The display wirelessly synchronously controls the standby and working power supply voltage of the wireless camera (power saving mode).
Product parameters

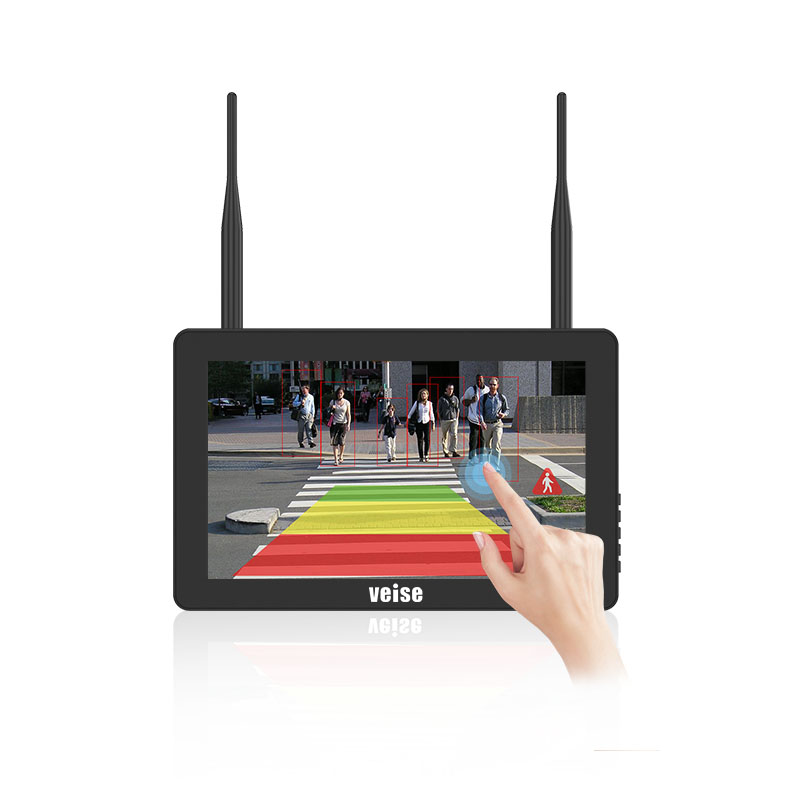

10.1-inch high-definition touch screen wireless display (MWHD-1012MTP-AI)
Color LCD car display	10.1 inch IPS HD touch screen
Wireless reception	Built-in 2.4G wireless receiver
resolution	1024RGB(H) X 600(V)
Viewing angle	Up, down, left and right: 85°
Operating frequency	2400~2483.5MHz
Receive sensitivity	≤86dBm
Transmission distance	Empty ≤ 200 meters
Standard	PAL/NTSC
Display mode	Support single/two-screen display
Pedestrian vehicle detection	Pedestrians and non-motorized vehicles will be alerted when they approach the area
Alarm area calibration	Customize the alert area
Vibration resistance rating	GB/T 2423.56-2018 (random 5G vibration)
Operating temperature	-20℃~+70℃
Storage temperature	-30℃~+80℃
Operating voltage	DC8-32V
Dimensions (L x W x T)	266.5X167.8X36.7（mm）
Installation:	360° gimbal base car mount

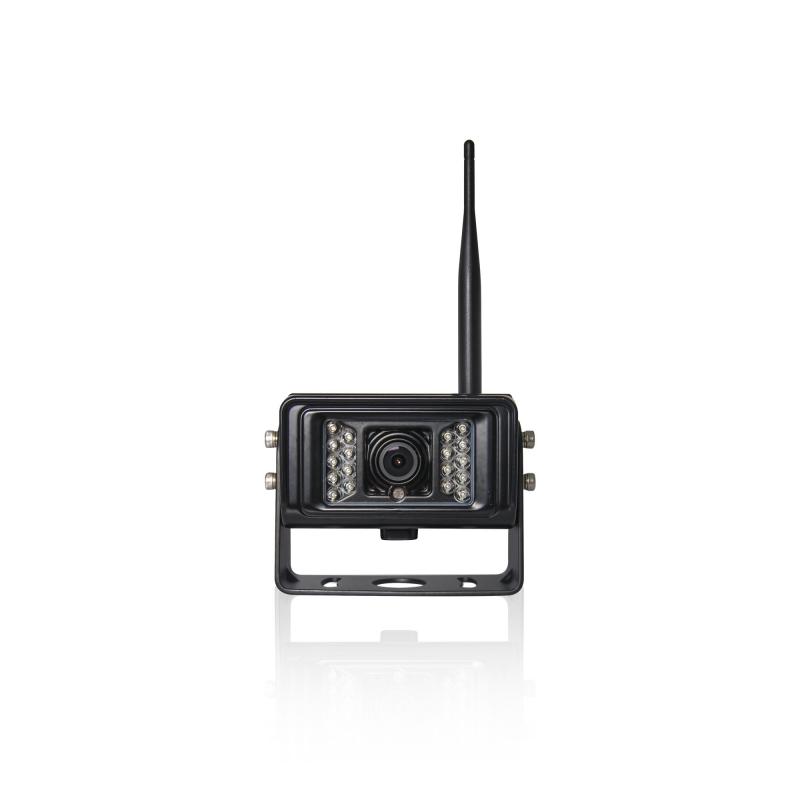

Wireless HD Car Waterproof Camera(CWHD-151M-AI)
Effective pixels	1920(H) X1080(V)
resolution	720P
Wireless transmission	Built-in 2.4G wireless transmitter
Transmit power	18dBm
Operating frequency	2400~2483.5MHz
Transmission distance	Empty ≤ 200 meters
Viewing angle	130°
Waterproof rating	IP69K
Pedestrian vehicle detection	It supports AI humanoid and vehicle model recognition
Power saving function	It can be used with a power box, and the standby current is as low as 10mA
Vibration resistance rating	Comply with GB/T2423.56-2008 standard
Operating temperature	-20℃~+60℃
Storage temperature	-30℃~+70℃
Operating voltage	DC8-32V
Dimensions (L x W x T)	91.6X75X71（mm）
