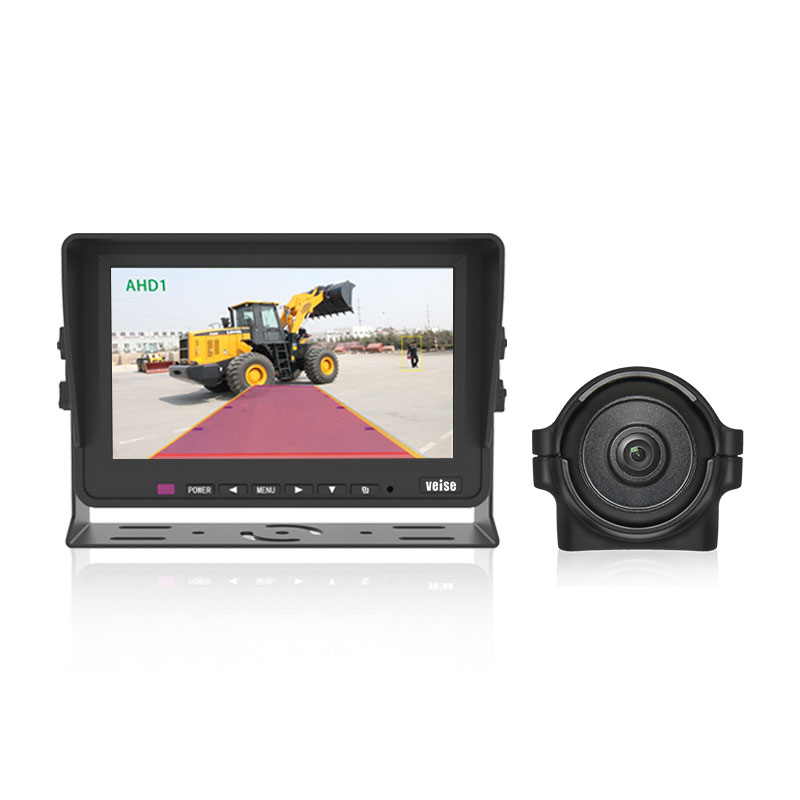

AI Pedestrian And Vehicle Warning Rear View System

AI Pedestrian And Vehicle Warning Rear View System

HDS-96119B1AI1
Since the driver's operation of vehicle machinery and equipment requires a high degree of concentration, without having time to observe the vehicle rearview monitor screen and without reversing radar warning, it is easy to cause safety hazards and lead to economic losses. The AI on-vehicle driving detection and prediction system not only eliminates the complex process of reversing radar installation and wiring, but also can detect the presence of people in the work area in real time and provide warnings, improving the efficiency of vehicle operation, eliminating safety hazards, and avoiding economic losses.

Consult

Features Technical Indicators Overall Dimension

The pedestrian detection and early warning reversing camera is a reversing safety monitoring device specially designed for industrial vehicles, such as forklifts, forklifts and other engineering equipment. It is equipped with a vehicle-mounted HD display to display high-definition images in real time, while simultaneously detecting people in the monitoring area in real time. Safety tips and warnings.
Pedestrian/Vehicle Detection: When motor vehicles, non-motor vehicles, or pedestrians approach the vehicle monitoring area, the system will provide early warning safety prompts. Replace radar installation with multiple wiring.

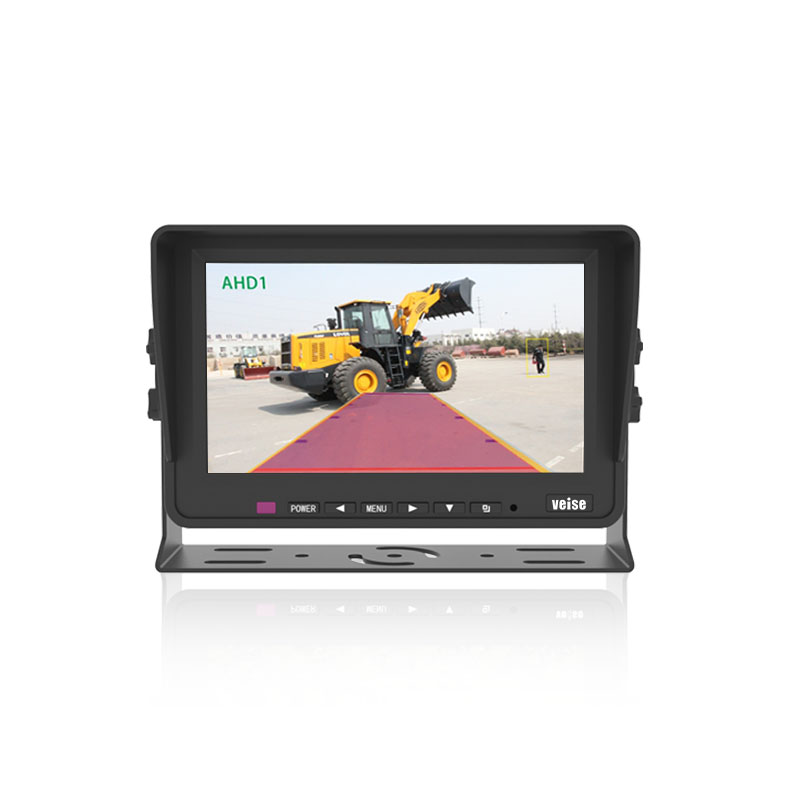

HD car display
9-inch IPS screen monitor supports 2-way HD video input
1024 (H) X 600 (V) resolution high-definition image
ABS material shell, high temperature resistance and vibration resistance
Automobile grade industrial grade -40°~85° digital video processor, load dump pulse voltage resistant
The OSD menu sets the mirror image and positive image of each display screen respectively.
Multi-language: Chinese, English
The bracket is made of rust-proof metal material, U-shaped + bilateral fastening and anti-vibration design
600cd/㎡ high brightness and clear image
Load dump pulse voltage DC24V+174V (350ms) designed to protect vehicles from transient pulse damage
Low power consumption independent power supply saves energy and ensures shelf life
Built-in power supply reverse polarity, LED constant current and constant voltage protection circuit
DC11~32V wide range operating voltage

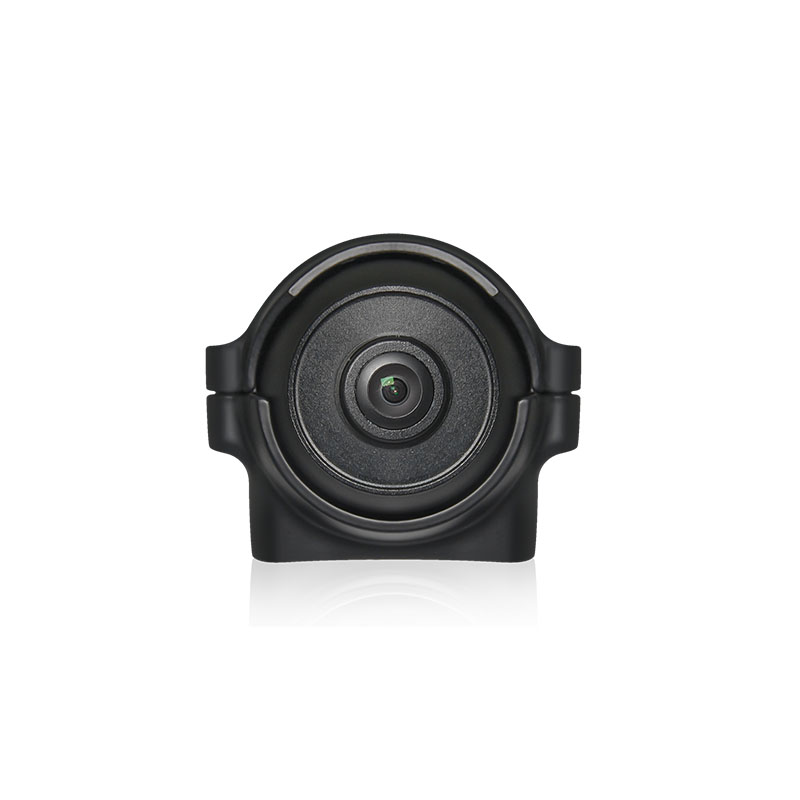

AI HD waterproof camera
AI smart camera alarms I/O output for pedestrians in the monitored area
AHD1080P high-definition starlight level color image
1920(H) X 1080(V) high definition
IP69K waterproof rating and 10G anti-vibration and high-pressure water washout resistance, suitable for uneven road vibrations and bumps
Aluminum alloy shell enhances heat dissipation function
The video power cord has low impedance application and the extension cord has no signal weakening. It is cold-resistant and suitable for cold and freezing environments. It is fully sealed and waterproof.
The visual window uses acrylic glass, which is suitable for vehicle road bumps and vibration resistance.
The aviation connection interface is sealed and waterproofed, fastened and anti-vibration, and not easy to loosen.
The sphere's omnidirectional viewing angle is installed and adjustable
Low impedance highly flexible cable
The internal and external injection molded aviation head interface is waterproof, fastening and anti-vibration
Low-impedance pure copper double-shielded cable resists electromagnetic radiation and long-distance transmission
Product parameters

High-definition LCD car display (MHD-911)
Color LCD screen	9-inch IPS screen
resolution	1024(H) X 600(V)
Video input	It can support up to 2 channels of AHD1080P/720P/CVBS video signal input
Picture mode	Single-channel switching
Color system	PAL/NTSC (AUTO)
Brightness (cd/m2)	600
Load dumping	ISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms)
Vibration resistance rating	GB/T 2423.56-2018 (random 5G vibration)
Operating temperature	-20℃ to +70℃
Storage temperature	-30℃ to +80℃
Operating voltage	DC11-32V
Dimensions	244(W)x179(H)x81(D) mm
HD Car Waterproof AI Camera (CHD-19B2AI)
Image sensors	1/2.9 Color Cmos
Effective pixels	1920(H) X 1080(V)
Horizontal clarity	1080P
Viewing angle	130°
Night vision mode	Starlight in full color
Detection function	Pedestrian/Vehicle Detection Alert
Alarm I/O	External buzzer (with switch, volume adjustable)
Waterproof rating	IP69K
Operating voltage	DC12-24V±10% (powered by display)
Operating temperature	-20℃ to +60℃
Storage temperature	-30℃ to +70℃
Vibration resistance rating	GB/T 2423.56-2018 (random 5G vibration)
Dimensions	74(W) x 64(H) x 56(D) mm

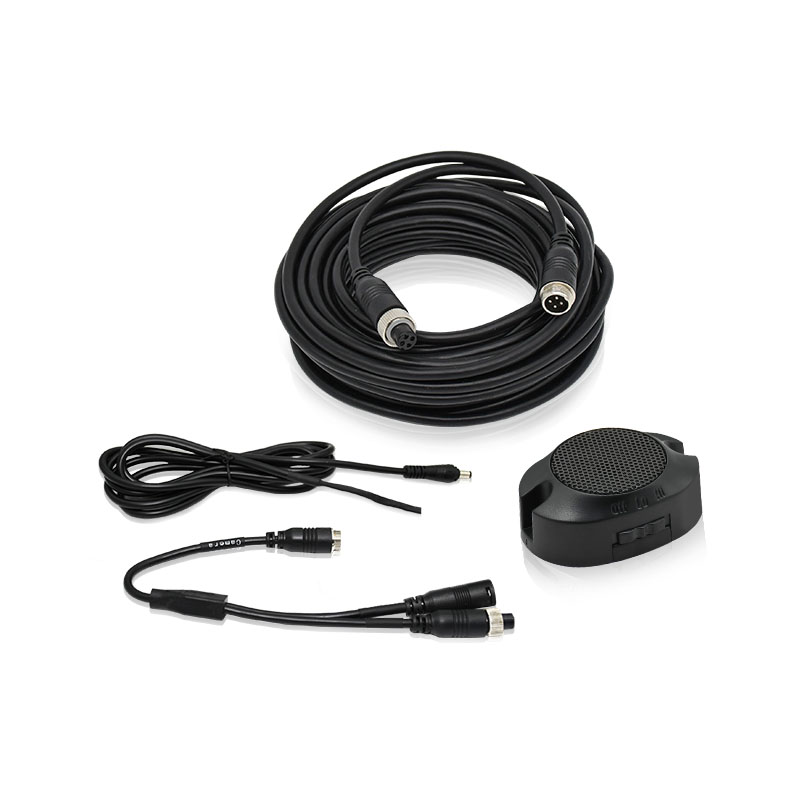

HD Video Signal Cable(XC-HD0004-B-15M-4X)
interface	4-core aviation male and female heads
length	15 meters
