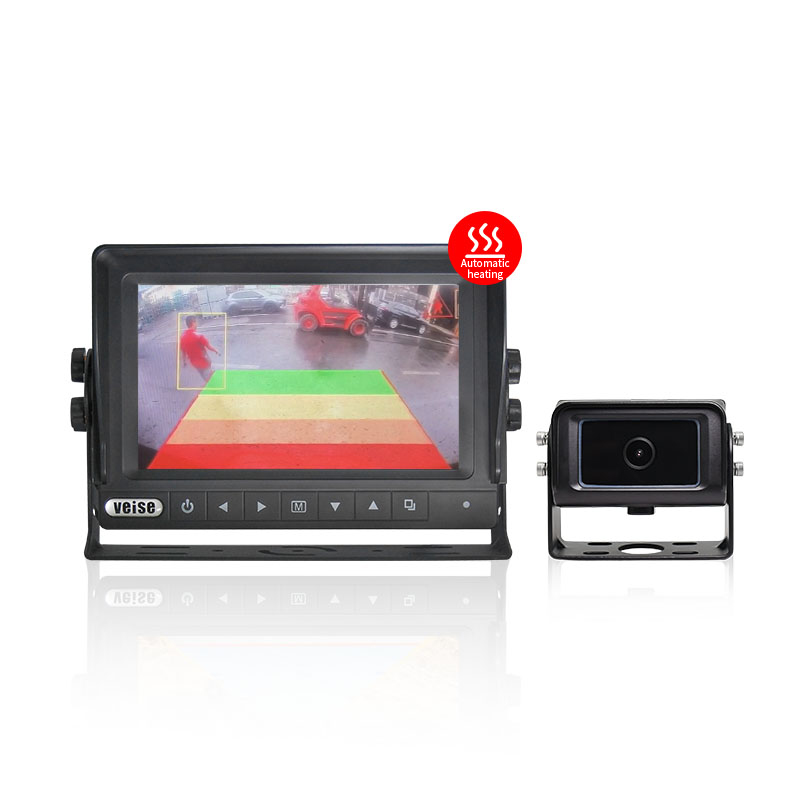

Cold Storage Forklift AI Pedestrian And Vehicle Warning Rear View System

Cold Storage Forklift AI Pedestrian And Vehicle Warning Rear View System

HDS-751R122MRAI1
During forklift construction operations, the driver has a blind spot for monitoring, which poses a major safety hazard. Especially in the low-temperature and high-humidity environment of cold storage, forklift cameras and monitors are prone to condensation that affects vision. To this end, a reversing rear-view system that automatically recognizes pedestrian targets, warns, and automatically heats, defogs, and defrosts is specially designed for cold storage forklift reversing rear-view monitoring and safety to improve driver efficiency, eliminate safety hazards, and ensure corporate efficiency.

Consult

Features Technical Indicators Overall Dimension

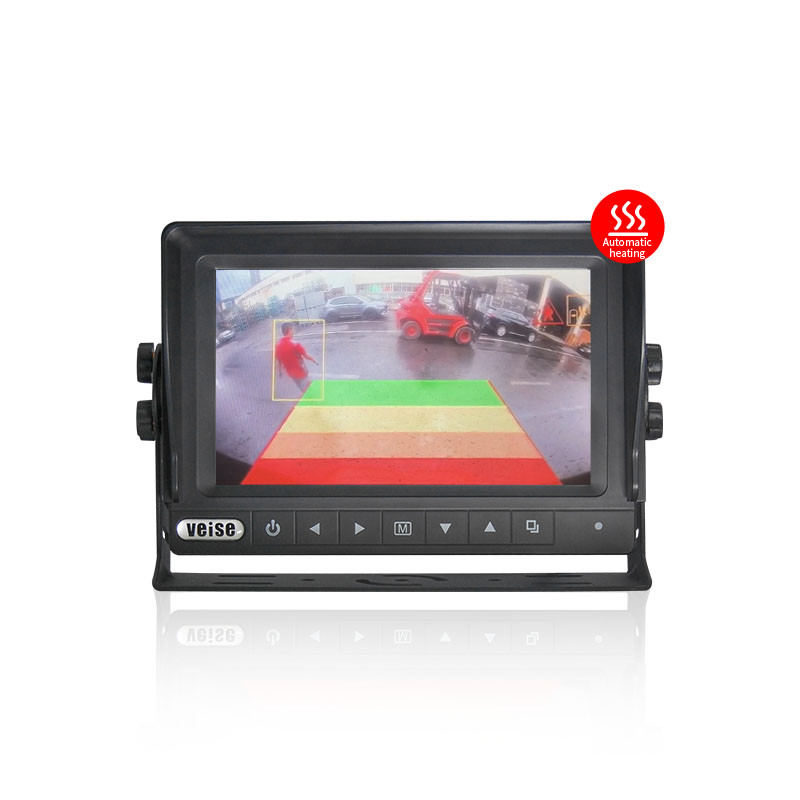

Waterproof car display
The 7-inch high-definition screen waterproof display supports 2-channel video input, fully sealed pressure equalization patented design, IP68 waterproof rating, automatic heater to remove condensation water, car-standard industrial-grade DSP, OSD menu to set the picture mirroring, normal image, and reverse picture delay respectively. , trigger the priority application function.
DC8~32V wide range operating voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection to avoid improper use and guarantee the shelf life.

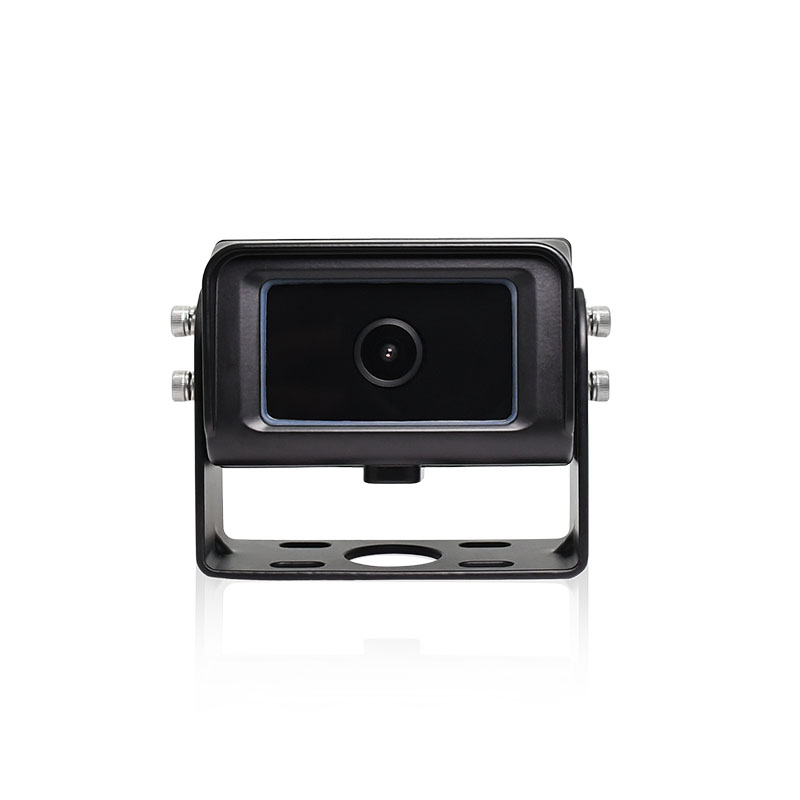

AI car camera
AI camera car-standard DSP, built-in automatic heater to remove condensation water, 130° ultra-wide angle, 2 million high-definition pixels, IP69K waterproof level, cold-resistant and waterproof signal output line.
Connecting line
4-core phosphor bronze aviation head double-shielded connection cable, good resistance to interference; low impedance, small signal transmission attenuation; double injection molding of the aviation head and tail wires, good resistance to tensile swing and ductility.
Product parameters

Low temperature heated waterproof display (MHD-751R)
Color LCD screen	7-inch IPS screen
resolution	1024RGB(H) X 600(V)dot
Waterproof rating	IP68
Video input	2 video inputs
Display mode	Single screen
Video signal input	CVBS /720P /1080P
OSD menu function	Support reversing screen trigger priority, delay, mirror Chinese/English language
Color system	PAL/NTSC (AUTO)
Brightness (cd/m2)	600
contrast	800:1
Surge and load dump protection	ISO16750-2 standard (24V system U.S. = 174 V, Ri = 4 Ω, td = 350 ms)
Fuselage line	2 meter conjoined wire
Operating temperature	Automatic heating below 10°C to -35°C
Storage temperature	-30℃ to +80℃
Operating voltage	DC11-32V
Vibration resistance rating	GB/T 2423.56-2018 (random 5G vibration)
size	(L x W x T) (220 x 149 x 84mm)
weight	1140g
Ai Camera (CHD-122MAI)
Image sensors	1/2.9 Color Cmos
Effective pixels	1920(H) X1080(V)
Night vision mode	Starlight in full color
Horizontal angle	100°
Detection function	Pedestrian/Vehicle Detection Alert
Alarm I/O	buzzer
Signal-to-noise ratio	≥48dB(AGC Off)
Video output	AHD 720P
Housing material	Aluminum alloy
Waterproof rating	IP69K
Operating voltage	DC 12-24V±10%
Operating temperature	Automatic heating below 10°C to +70°C
Storage temperature	- 30°C~+70°C RH95%Max
Vibration resistance rating	GB/T 2423.56-2018 (random 5G vibration)
Body interface	4-core aircraft carrier head
Product dimensions	82(W)x73(H)x68(D) mm
