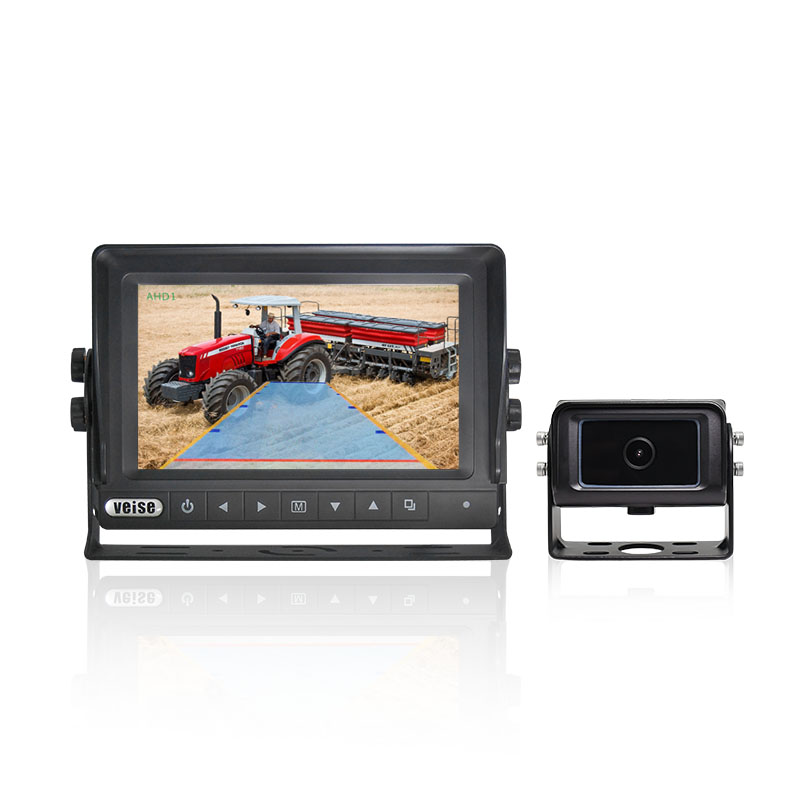

AI Waterproof Car Display Pedestrian And Vehicle Detection System

AI Waterproof Car Display Pedestrian And Vehicle Detection System

HDS-751122MAIM1
Since the driver's operation of vehicle machinery and equipment requires a high degree of concentration, without having time to observe the vehicle rearview monitor screen and without reversing radar warning, it is easy to cause safety hazards and lead to economic losses. The AI on-vehicle driving detection and prediction system not only eliminates the complex process of reversing radar installation and wiring, but also can detect the presence of people in the work area in real time and provide warnings, improving the efficiency of vehicle operation, eliminating safety hazards, and avoiding economic losses. IP68 waterproof displays are widely used for safety monitoring of machinery, equipment, and vehicle operations in outdoor environments with high humidity, dust, underground operations, and rainy seasons.

Consult

Features Technical Indicators Overall Dimension

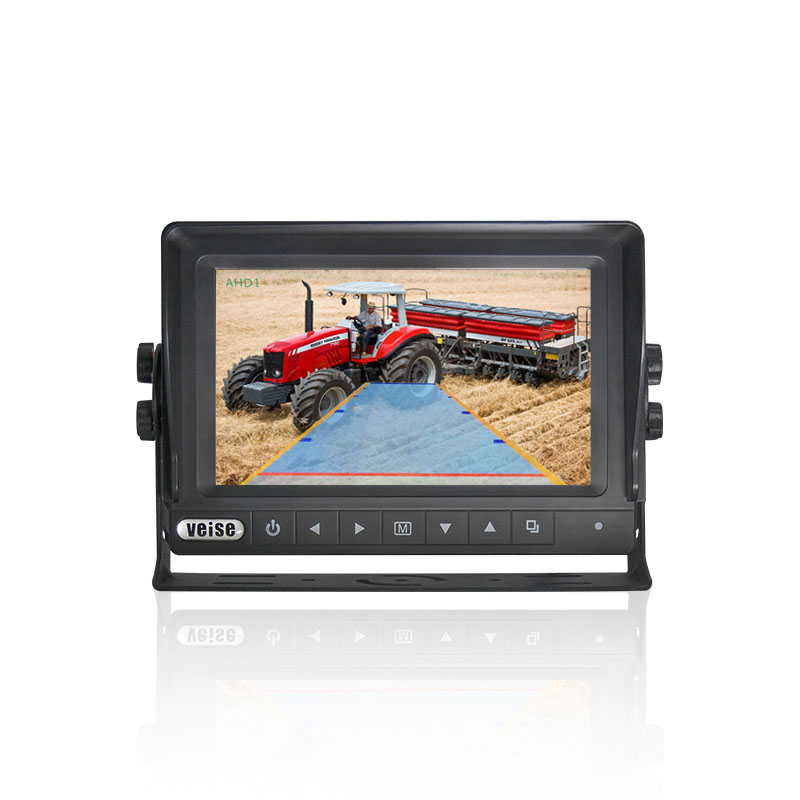

Waterproof car display

The 7-inch high-definition screen waterproof display supports 2-channel video input, fully sealed pressure equalization patented design, IP68 waterproof level, automotive-grade industrial-grade DSP, and OSD menu to respectively set the screen mirroring and forward image, reverse screen delay, and trigger priority application functions.

DC8~32V wide range operating voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection to avoid improper use and guarantee the shelf life.

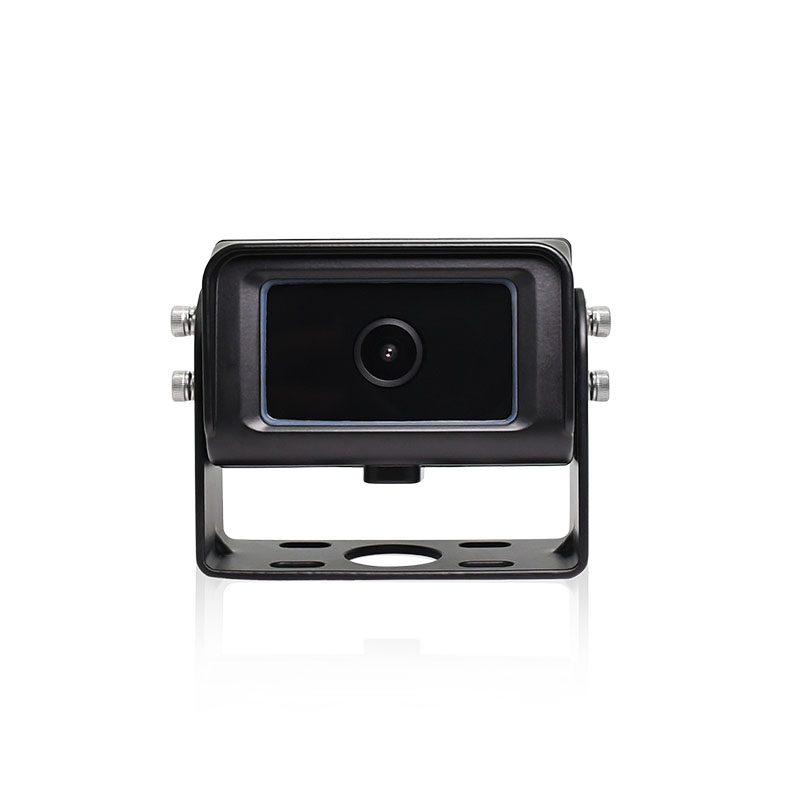

AI car camera

AI camera car-standard DSP, 130° ultra-wide angle, 2 million high-definition pixels, IP69K waterproof rating, cold-resistant and waterproof signal output line, installation at any angle.

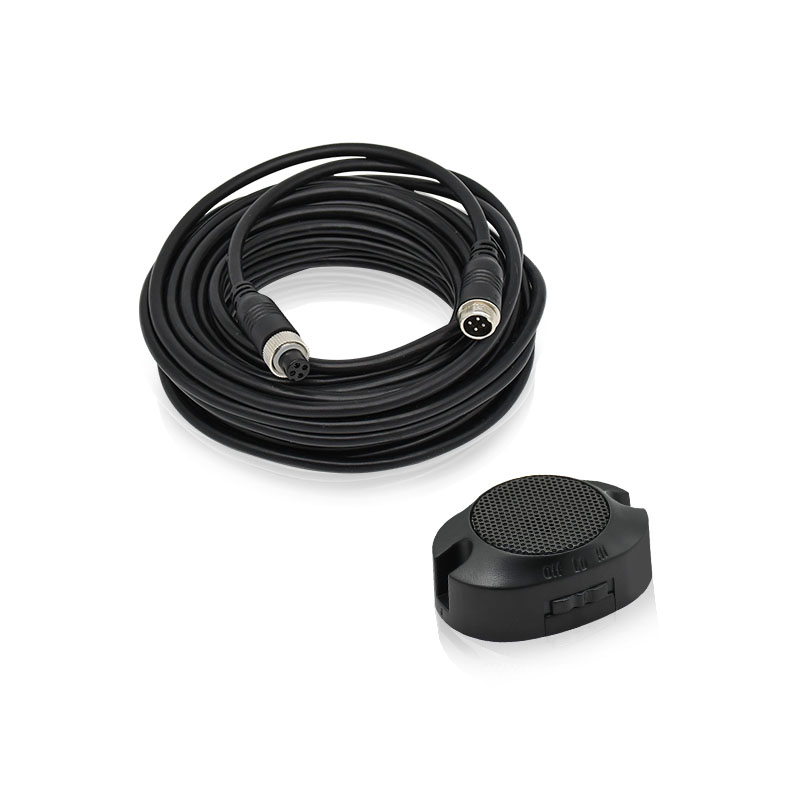

Connecting line

4-core phosphor bronze aviation head double-shielded connection cable, good resistance to interference; low impedance, small signal transmission attenuation; double injection molding of the aviation head and tail wires, good resistance to tensile swing and ductility.
Product parameters

Waterproof display (MHD-751)
Color LCD screen	7-inch IPS screen
resolution	1024RGB(H) X 600(V)dot
Waterproof rating	IP68
Video input	2 video inputs
Display mode	Single screen
Video signal input	CVBS /720P /1080P
OSD menu function	Support reversing screen trigger priority, delay, mirror Chinese/English language
Color system	PAL/NTSC (AUTO)
Brightness (cd/m2)	600
contrast	800:1
Surge and load dump protection	ISO16750-2 standard (24V system U.S. = 174 V, Ri = 4 Ω, td = 350 ms)
Fuselage tail line	2 meter conjoined wire
Operating temperature	-20℃ to +70℃
Storage temperature	-30℃ to +80℃
Operating voltage	DC11-32V
Vibration resistance rating	GB/T 2423.56-2018 (random 5G vibration)
size	(L x W x T) (220 x 149 x 84mm)
weight	1140g
AI Camera (CHD-122MAI)
Image sensors	1/2.9 Color Cmos
Effective pixels	1920(H) X 1080(V)
Horizontal clarity	1080P
Viewing angle	130°
Detection function	Pedestrian/Vehicle Detection Alert
Alarm I/O	buzzer
Signal-to-noise ratio	≥48dB(AGC Off)
Video output	AHD 1080P
Housing material	Aluminum alloy
Waterproof rating	IP69K
Operating voltage	DC12-24V
Operating temperature	-20℃ to +60℃
Storage temperature	-30℃ to +70℃
Vibration resistance rating	GB/T 2423.56-2018 (random 5G vibration)
Body interface	4-core aircraft carrier head
Product dimensions	82(W) x 73(H) x 68(D) mm
